Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


where did you get the engine tilter on the manifold? The one I have is light enough I dont like it

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: m22mike</div><div class="ubbcode-body">Very cool Tim, so was she really diggin' it that much. [img]<<GRAEMLIN_URL>>/hmmm.gif[/img]...carry on.

Mike </div></div>

LOL!. She was quite entertained.................with Mecum. Helping me.................well ya know!

She admits that she lost count on how many times I have had this car apart in the 13 years I've owned it.

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: kwhizz</div><div class="ubbcode-body">Pretty classy helper you have there mister ............. </div></div>

Agreed. Somedays................not sure what she sees in me!

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: pxtx</div><div class="ubbcode-body">So where are you headed Tim, I mean with the reconfiguration. What parts are you keeping and what is coming out? </div></div>

The engine is headed to the engine builder tomorrow. We spoke today. I would think the duration would get pulled down to around 240 degrees and open up the lobe center to around 110 degrees. We also spoke of possibly going to a dual plane manifold.

The M22, Ramrod, and most other things will stay. Just want some more manners. I felt if I landed around 520-530hp with this many inches it should have much better manners yet still be a pretty stout combination.

I'll try to keep the carb (950cfm) , although later on I would entertain switching to fuel injection. Before I send the headers out to be coated, I'll weld in some O2 bungs.

The engine builder told me to expect about a month's time. I suppose I'll spend the money to dyno it again to see where we are at with power, torque, and A/F ratios.

I gave some thought to redirecting to a true Day 2 theme. I have a lot of money invested in the parts that are here and they work very well. The car has tubular front control arms, rack &amp; pinion, CE Slide a Links, Ford 9&quot;, etc.,etc. It would be more than I care to spend to make the car more authentic.

Tim

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Billohio</div><div class="ubbcode-body">where did you get the engine tilter on the manifold? The one I have is light enough I dont like it </div></div>

This is the first time I used it Bill. I would highly recommend!

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


After a bit of brainstorming, this is a good candidate for the cam I am going to use.


http://www.compcams.com/Company/CC/c...d=305&amp;sb=2

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!

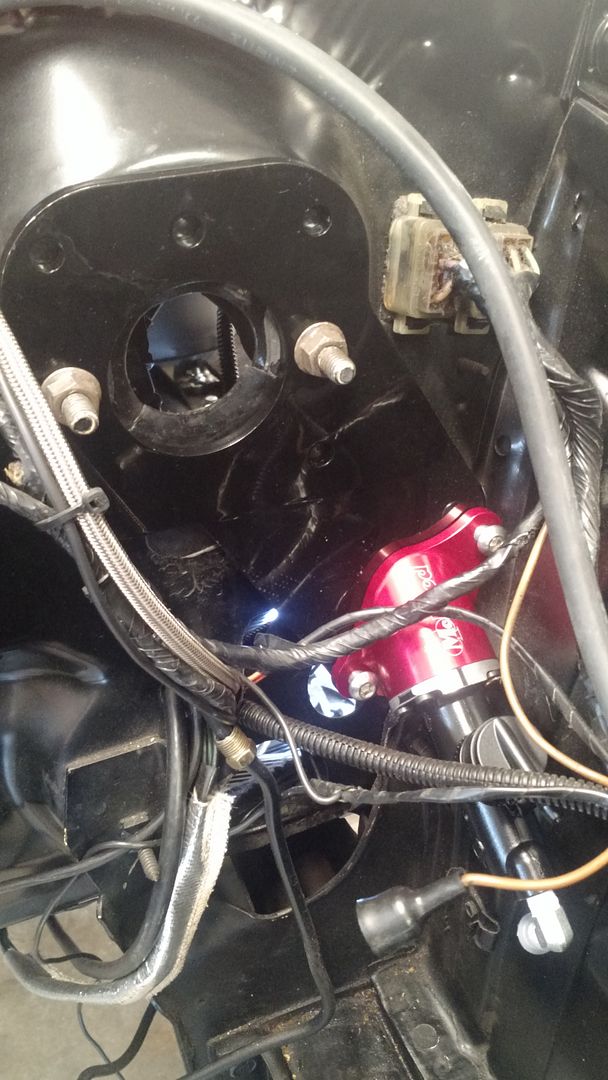

Also have been working on some little things. Naturally, there is no such thing as a bolt in. Just getting everything fitted for the clutch master. Had to grind on the mounting plate for the master as it hit the inner fender.

http://i1043.photobucket.com/albums/...ps36htkjwb.jpg

After some finessing, looks like the master is mounted correctly, and will provide the right geometry for the pedal ratio. Just have to tidy up some wiring.

http://i1043.photobucket.com/albums/...pspizq0hhm.jpg

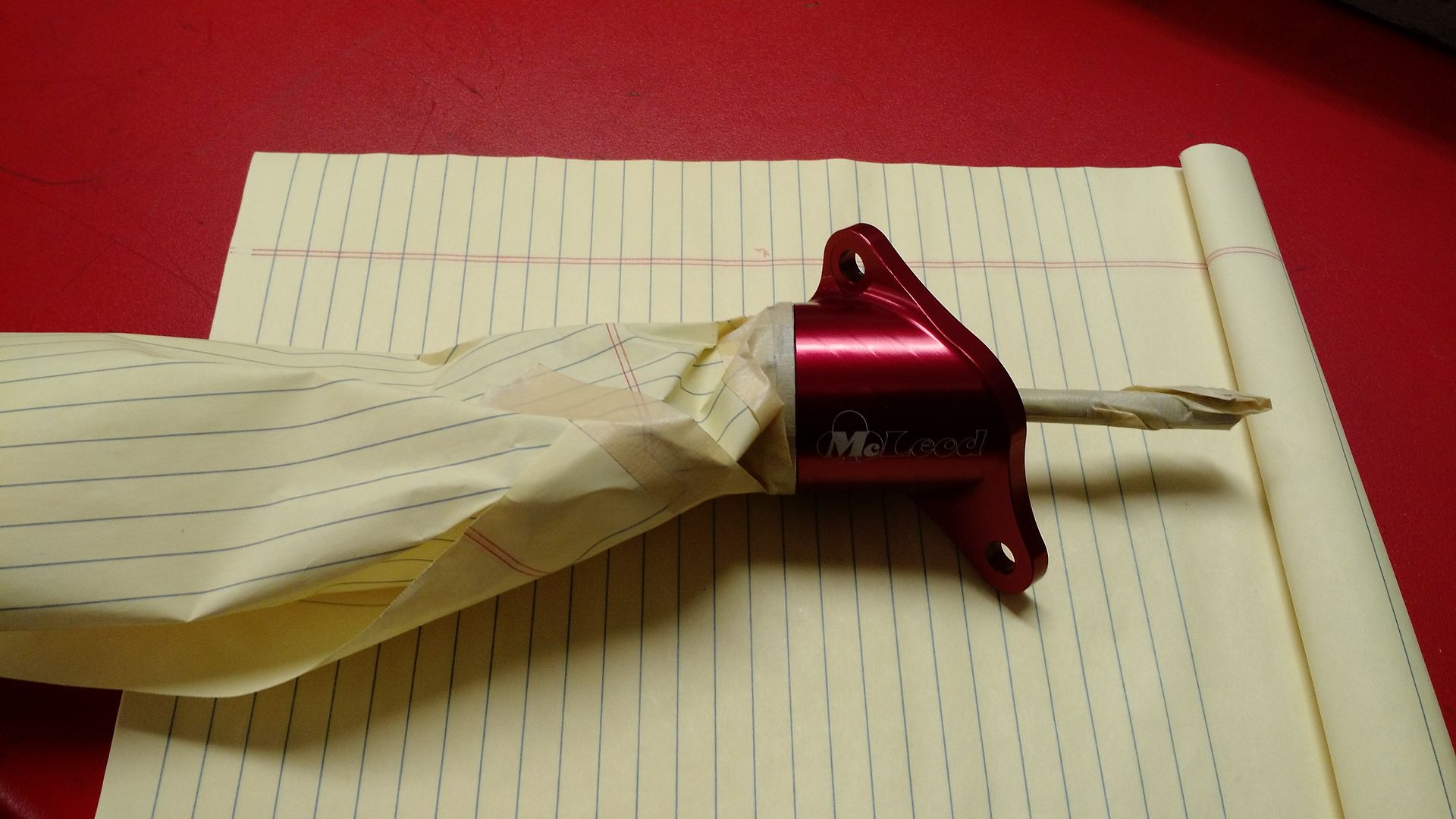

I hate the red on the master, so it needs to be black..............Nice masking paper eh?

http://i1043.photobucket.com/albums/...psetgtzasj.jpg

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


Back from the machine shop....................

New cam, new RPM intake, new attitude!

http://www.compcams.com/Company/CC/c...d=306&amp;sb=2

The shaft rockers I have are a 1.6 ratio, so that will put the lift at or above .610&quot;

Gotta get working!

Re: Tim Schuetz;s (NAPA68) not so stock 1967 Nova!


Now Photobucket is working!

http://i1043.photobucket.com/albums/...pssastaomw.jpg
