Re: LS6


Our 70 Nova L78 car has the ZJ9 option and it is listed on the window sticker.

-wilma

Re: LS6


Bill
The CD-2 fiber optic washer jar monitor was available all by itself as RPO CD-2.
Or if you ordered the ZJ-9 Auxilary Lighting group,you got the CD-2 option,plus the Courtesy Lights,( Ashtray light,Floor,Trunk & Hood under lights),and the Rear View Mirror map light too.
The U-46 Light Monitoring Vigilites were available separately & not with this group.

Thanks for the pics..

Re: LS6


Car looks amazing! I'd love to see it person. ( MCACN Vintage Cert 2017 Charley? ) Cool paperwork too... Chassis Broadcast has an error on it, let's see if anybody can find it. BTW I have no issue with it's authenticity as I believe it's real. Cool car.
Bill, washer fluid monitor is part of the ZJ9 Auxiliary lighting group not the U46 lamp monitor.
Chris

Re: LS6

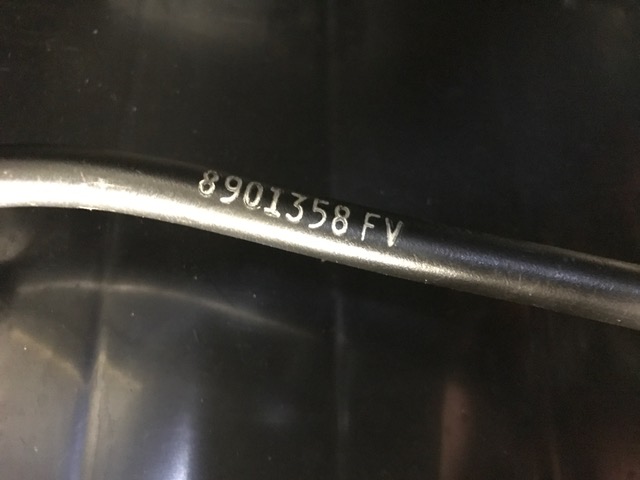

Never seen a YE Negative Battery cable on a 1970 LS-6 Chevelle...Just PE,FV & YG.

Re: LS6


Good eye Rick. YE on the negative cable is the issue. YE is a top post cable code. Correct side post codes would be FV or PE.
Chris

Re: LS6


I hear ya.
I understand we're technically talking R79w side terminal battery here,but I included the YG R59 Top terminal Neg.battery cable code,as I have a few 1970 LS-6 Chevelles built @ Baltimore & Van Nuys here showing those came with an R59S battery too.
All early December 1969 assembly dates too so that would explain it.

Re: LS6


https://www.yenko.net/ubbthreads/pics...0-img_1822.jpg

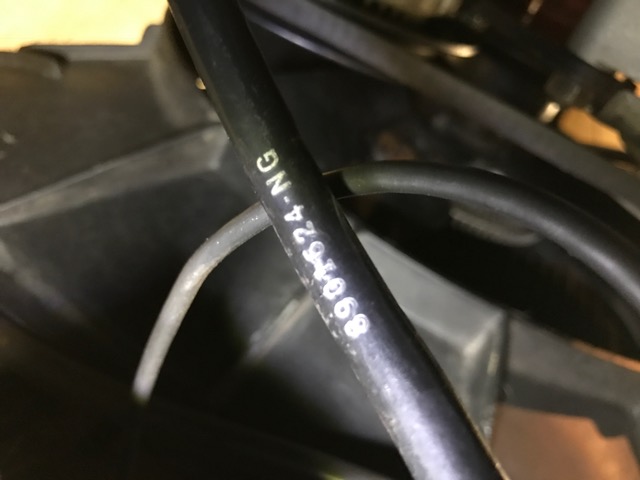

https://www.yenko.net/ubbthreads/pics...1-img_1821.jpg

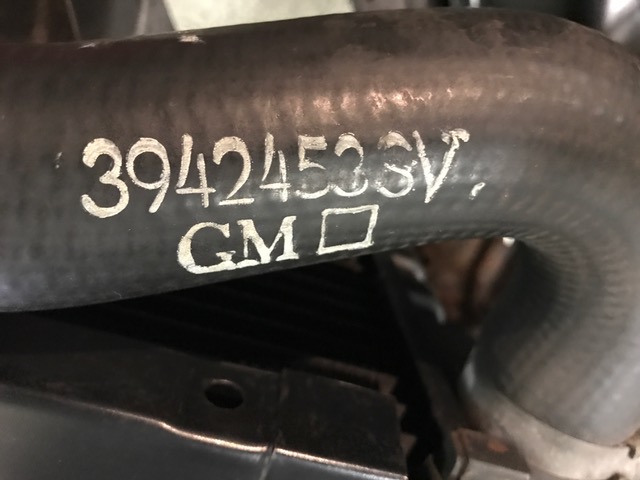

https://www.yenko.net/ubbthreads/pics...2-img_1823.jpg

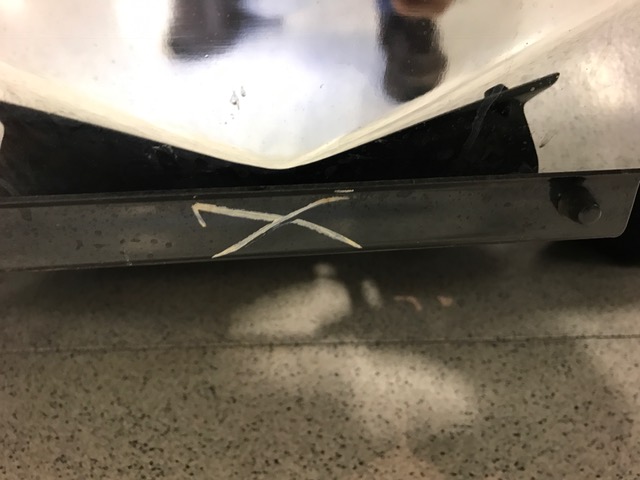

https://www.yenko.net/ubbthreads/pics...4-img_1824.jpg

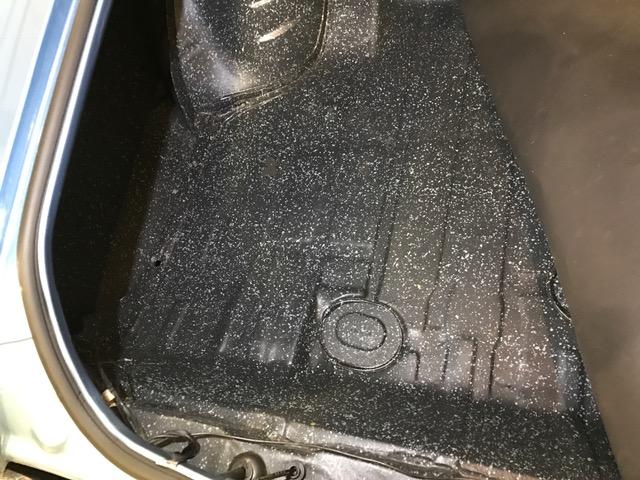

https://www.yenko.net/ubbthreads/pics...5-img_1825.jpg

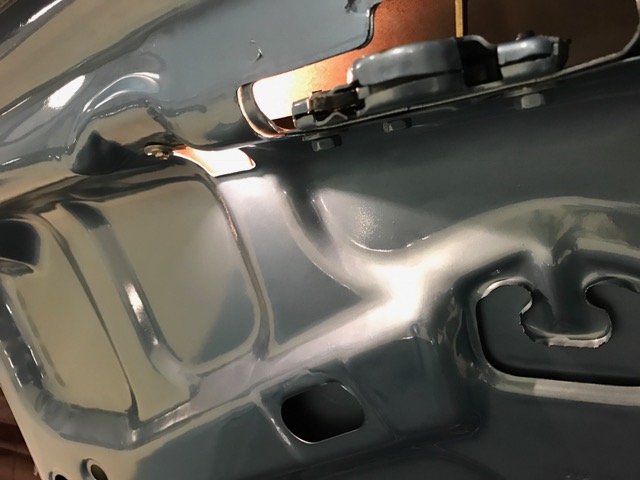

https://www.yenko.net/ubbthreads/pics...6-img_1826.jpg

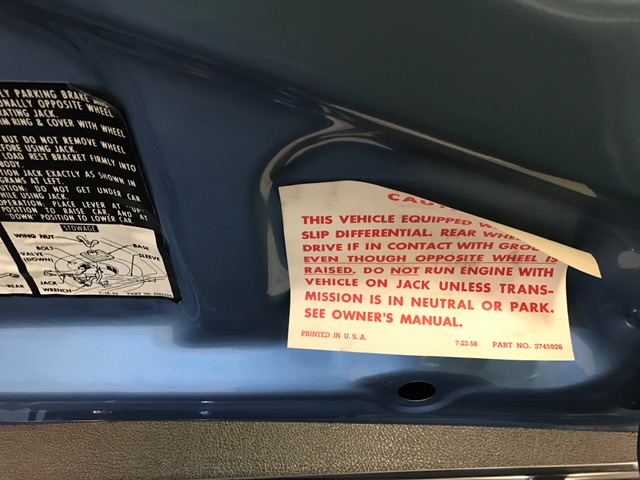

https://www.yenko.net/ubbthreads/pics...7-img_1827.jpg

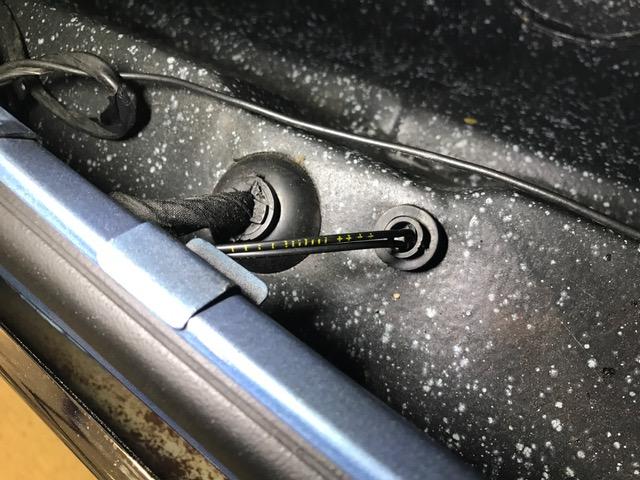

https://www.yenko.net/ubbthreads/pics...8-img_1828.jpg

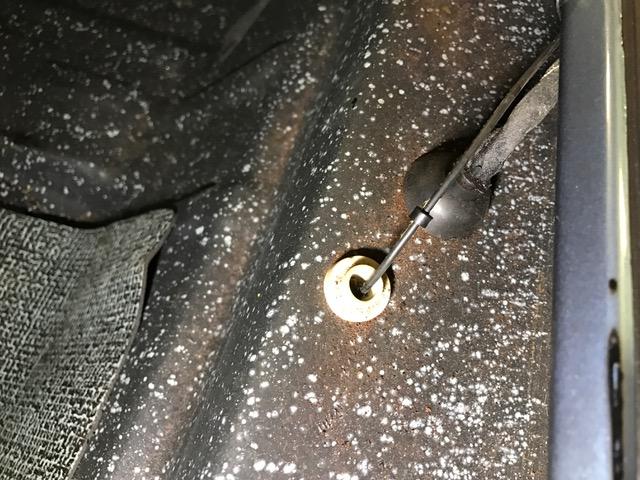

https://www.yenko.net/ubbthreads/pics...9-img_1829.jpg

Re: LS6


Barely broken in! How much warranty left ...?

Re: LS6


wow that is incredible! it must have sat in some ones living room all these years! or at least a temp controlled environment! awesome Charley!

Re: LS6


Nice car! Was this ever in the Northeast Ohio area, Cleveland to be specific? I see Toledo on the paperwork, but I remember a car with striking similarity about 30 years ago.....it was around one night then we never saw it again...... [img]<<GRAEMLIN_URL>>/hmmm.gif[/img]
