iluv69s 10-16-2011 02:36 PM

Cowl markings on my L-78 M-22 Indy

I am getting ready to restore my Indy soon and I can see the cowl markings under the black paint on the firewall, but they are not very clear. What is the best way to clean paint off the cowl without eliminating the markings?

Thanks !!

resto4u 10-16-2011 05:02 PM

Re: Cowl markings on my L-78 M-22 Indy

plastic media blasting, very carefully.

m22mike 10-16-2011 05:08 PM

Re: Cowl markings on my L-78 M-22 Indy

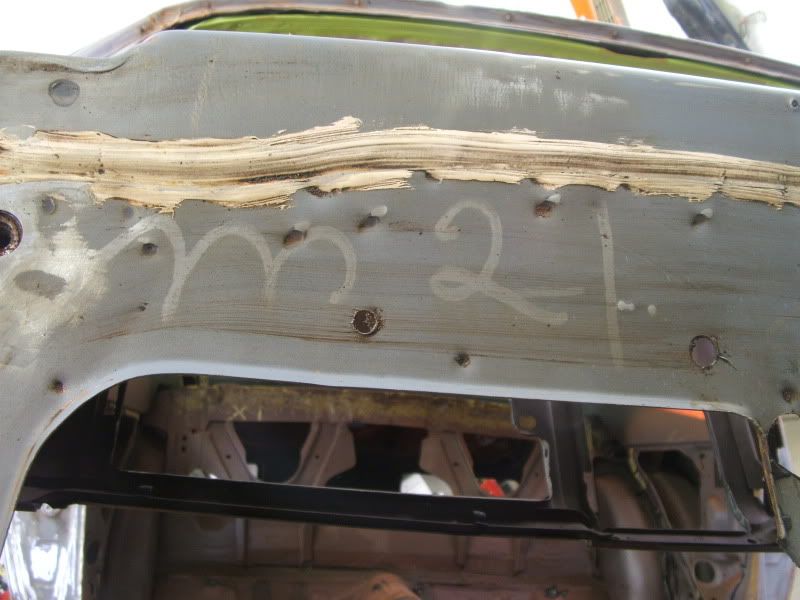

Check this out. Those crayon marks were done on bare steel. I stripped this firewall with cheap Kleen strip. It was buzzed with rattle can black, plus the OE lacquer.
The primer underneeth is very tough stuff, work the black off and wipe with lacquer thinner till you get to the gray.
The crayon will be gone, but the primer that was over the marks locks in the image.

http://i18.photobucket.com/albums/b1.../COPO02831.jpg

http://i18.photobucket.com/albums/b1.../COPO02827.jpg

http://i18.photobucket.com/albums/b1.../COPO02826.jpg

Show us the pictures... [img]<<GRAEMLIN_URL>>/grin.gif[/img]...we like pictures... [img]<<GRAEMLIN_URL>>/naughty.gif[/img]

mockingbird812 10-16-2011 06:41 PM

Re: Cowl markings on my L-78 M-22 Indy

I like YOUR picts Mikey!

iluv69s 10-16-2011 07:51 PM

Re: Cowl markings on my L-78 M-22 Indy

Thanks guys..I will try the lacquer thinner method since I have no media at the moment....

And Yeh, great pics Mikey...I will post some pics of my car 'as-is' before I remove the paint... And then some after pics also.....I am in Brasil at the moment but will post some pics when I get back in the US next week..I can see some of the markings, but cannot figure them out...I'm sure you guys probably can help.

Thanks agaian..and thanks SYC

iluv69s 10-16-2011 07:54 PM

Re: Cowl markings on my L-78 M-22 Indy

Thanks guys..I think I will try the lacquer thinner method since I have no media at the moment....

And Yes, great pics Mike...I will post some pics of my car 'as-is' before I remove the paint... And then some after pics also.....I am in Brasil at the moment but will post some pics when I get back in the US next week..I can see some of the markings, but cannot figure them out...I'm sure you guys probably can help.

Thanks agaian..and thanks SYC

MosportGreen66 10-16-2011 11:12 PM

Re: Cowl markings on my L-78 M-22 Indy

Awesome photos Mike! Saved for reference!

Thanks,
Dan

firstgenaddict 10-17-2011 04:26 AM

Re: Cowl markings on my L-78 M-22 Indy

Is that a OR (orange) behind the Z21

m22mike 10-17-2011 04:55 AM

Re: Cowl markings on my L-78 M-22 Indy

Look closely , it is a big &quot;OK&quot; in yellow, it was over the Z21.

Mike

Kurt S 10-17-2011 07:50 AM

Re: Cowl markings on my L-78 M-22 Indy

Note that the cowl markings were all under the blackout paint and wouldn't be visible in the finished car. That was the whole purpose of the blackout paint..... [img]<<GRAEMLIN_URL>>/smile.gif[/img]
