69 DZ 302 Engine ID.........


I have, what I think is the real deal (1969 DZ 302 Engine). I would just like some input on this to make sure it is a DZ 302.

Here's some numbers I have found.....Thanks for any help.

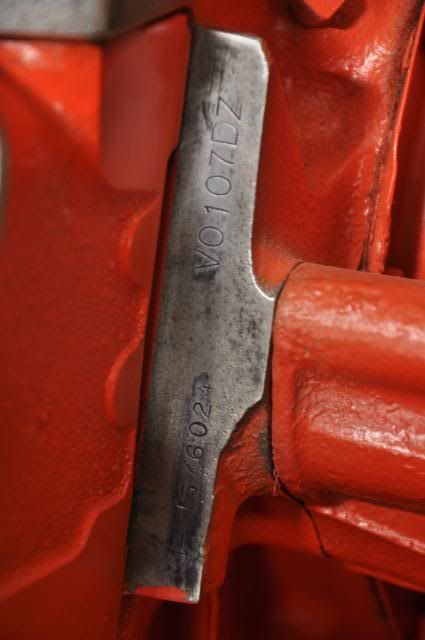

Front pad....... V0107DZ 1576024


Oil Filter....... 371 388 88N

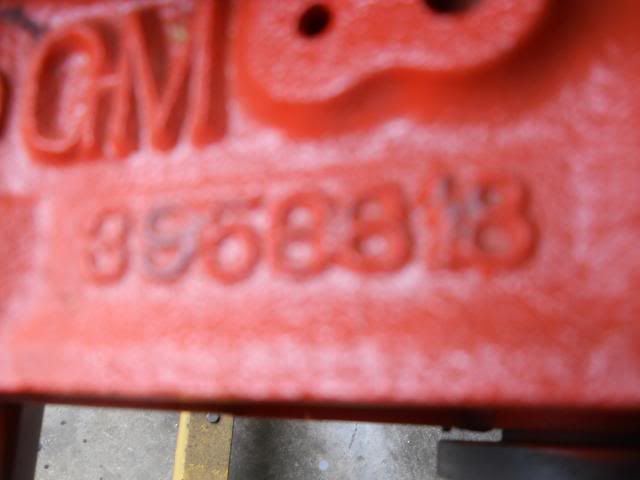

Back of block........3956618

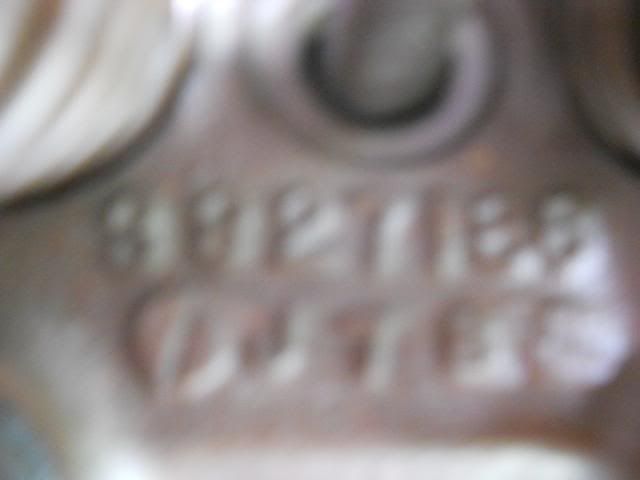

Heads........3927186

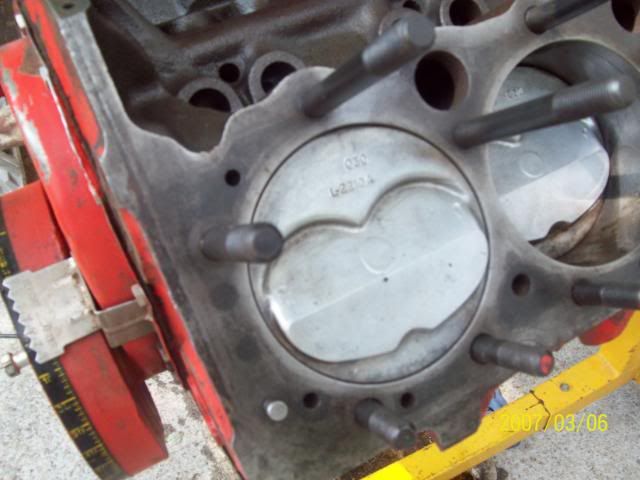

Couple pics..........

http://i88.photobucket.com/albums/k1...1/100_0637.jpg

http://i88.photobucket.com/albums/k1...1/DSCN2226.jpg

http://i88.photobucket.com/albums/k1...1/100_0646.jpg

http://i88.photobucket.com/albums/k1...1/DSCN2223.jpg

http://i88.photobucket.com/albums/k1...1/DSCN2226.jpg

Re: 69 DZ 302 Engine ID.........


DZ is nothing but a suffix code. At least the block started life as a 302 it looks like. All those 4 bolt blocks could be in many applications. Have to see if the crank says 1178 on it. Its casted on the first throw up by the balancer. That is a Z/28 crankshaft. Rest of the stuff looks pretty good from here. DZ code looks like January 7th of 69.

Re: 69 DZ 302 Engine ID.........


If stampings are original and pad location correct for Vin, isn't there some digits missing between the 1 and 5?
9N if Norwood car?

VIN 124379N576024 ?

[img]<<GRAEMLIN_URL>>/dunno.gif[/img]
~ Pete

Re: 69 DZ 302 Engine ID.........

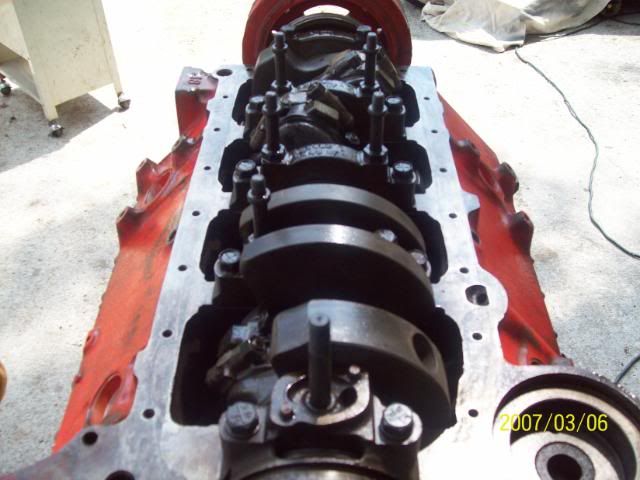

I checked the numbers on the crank and it is a 1178 and main caps are 2482.

Re: 69 DZ 302 Engine ID.........


Main caps would be the same for a 350....I think? The crank being an 1178 is a 3&quot; stroke so you are good. Like I said DZ is a suffix code for a Z/28. Block is nothing special compared to other 4 bolt blocks.

Re: 69 DZ 302 Engine ID.........


You need to provide a good sharp image of the pad with the stampings. Use the Macro setting on your camera (Flower symbol).

Then we can see if it is a &quot;real&quot; DZ-block.


Jan

Re: 69 DZ 302 Engine ID.........


[quote=jannes_z-28]You need to provide a good sharp image of the pad with the stampings. Use the Macro setting on your camera (Flower symbol).

Then we can see if it is a &quot;real&quot; DZ-block.


Jan [/quote

http://i88.photobucket.com/albums/k1...1/DSC_0787.jpg]

Re: 69 DZ 302 Engine ID.........


i believe that 1 is an L or van nuys car. stamp looks good to me, but i am no expert.

Re: 69 DZ 302 Engine ID.........


just checked with a friend who has an 01B norwood z-28. his vin is 9n575XXX and his vin is by the oil filter. i dont think that after they changed the location, they would go back to the pad.

Re: 69 DZ 302 Engine ID.........


A different plant might have done things differently.
