PRIMER COLOR


ON A 69 CAMARO NORWOOD CAR WHAT COLOR PRIMER WAS USED ON THE INSIDE & OUTSIDE OF THE CAR

Re: PRIMER COLOR


I dont have the answer regarding Norwood 1969 Primer Color.

I can say that that 1970 Norwood Camaro bodies were submerged in
a tank of Red Oxide (colored) Primer.

This is documented in Phil Borris's book on The NORWOOD Assy Plant

Re: PRIMER COLOR


Dependent on when the car was built. Line was reconfigured after the elpo tanks became operational.

What color are you finding?

Re: PRIMER COLOR


Don't know for sure. My friends 01B Norwood car is Gray primer. My 05A Norwood car is red oxide.
Buddy

Re: PRIMER COLOR

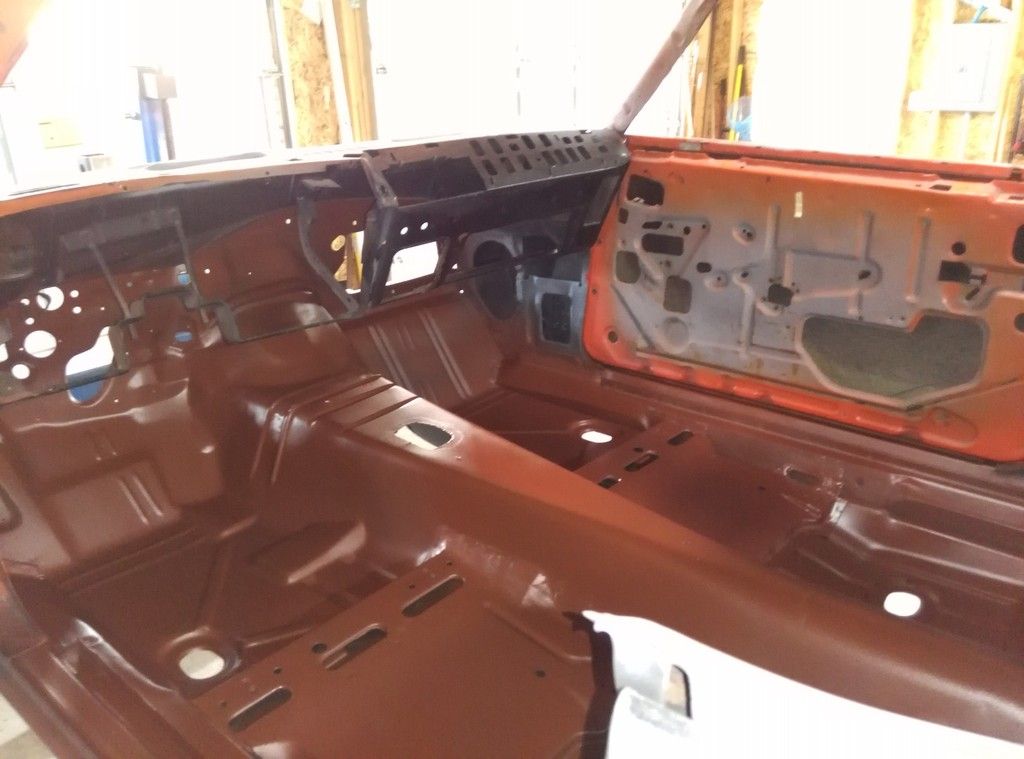

My 08D 69 was red oxide. That's what I tried to mimic when I built it. Mine came out a little darker, but I liked it. In the below pics, you can see the back seat braces are original and the inner fenders and floor I replaced are what I painted.
I toyed around with the idea that it could have been grey primer that had HO misted on it from painting the body, but I decided that wasn't the case after looking at certain parts that weren't as faded as others. Like the back seat hump.


http://i1164.photobucket.com/albums/...713_223130.jpg

http://i1164.photobucket.com/albums/...713_200619.jpg

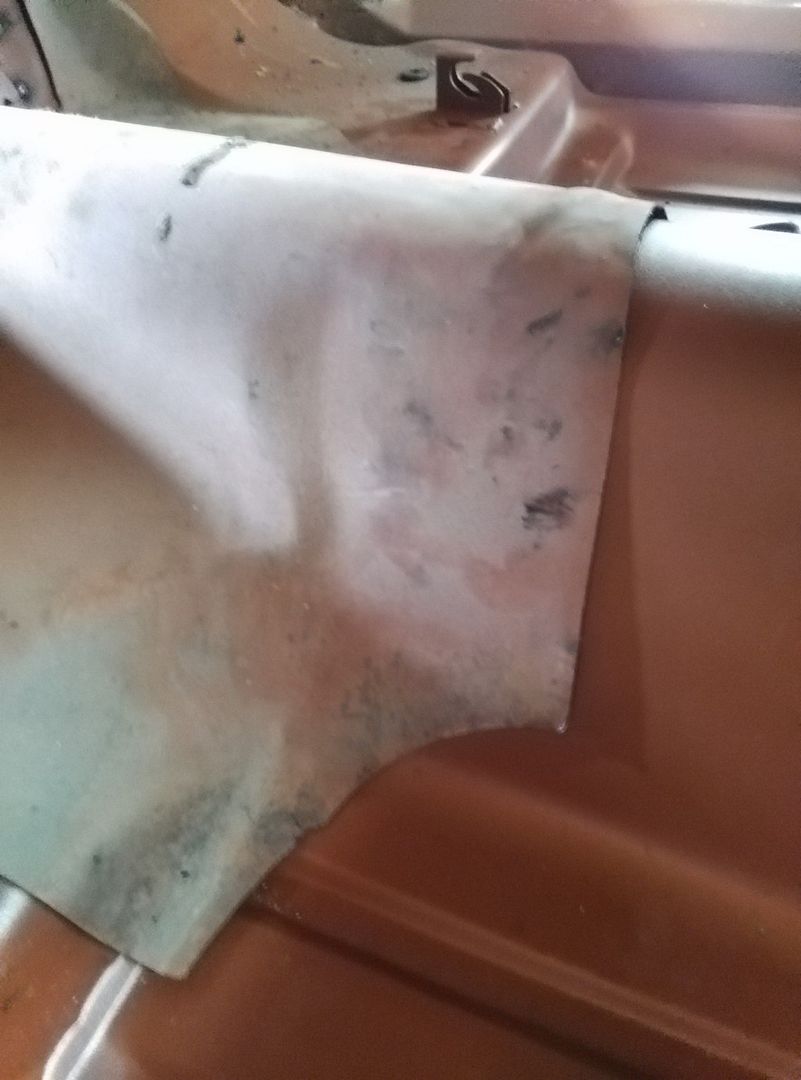

My original hump laying on the new floor.

http://i1164.photobucket.com/albums/...411_173553.jpg

Re: PRIMER COLOR


Phil - correct me if I'm wrong, but my understanding is that the red oxide in the ELPO tanks "aged"...in other words, the color got darker the older the material was in the tank. Whenever they added new primer to the ELPO tank, it would lighten again, but slowly age darker. The amount of color change through the variations was likely very slight. For my purposes, I use SPI's epoxy and add 8% by weight black to their red oxide and 5% flattening agent. I tried several spray outs and this combo matches an inner upper cowl section from a 70 Norwood car that was never exposed to sunlight. I the pics below, the forward and upper cowl have flattened completely...the inner section pic was taken not long after shooting the epoxy and will flatten further.

file:///home/nuwer/Pictures/CTZ%20red%20oxide.jpg
file:///home/nuwer/Pictures/CTZ%20red%20oxide%201.jpg

Re: PRIMER COLOR


Let's try those pics again...

https://www.yenko.net/ubbthreads/pics..._red_oxide.jpg
https://www.yenko.net/ubbthreads/pics...ed_oxide_1.jpg

Re: PRIMER COLOR


You are exactly right. When GMAD took over and after the 6 month strike by 1973 the darker color was the end result of cycling through of all of the old material that remained unused from the 1972 strike and finding a way to make it work and work longer.

When GMAD found that the old material could be made to work the cycle time on the product remaining in the tanks in was extended well beyond the original Fisher Body specification.

GMAD saved money but quality suffered.

Re: PRIMER COLOR


https://www.yenko.net/ubbthreads/pics...3-dsc_0152.jpg
https://www.yenko.net/ubbthreads/pics...4-dsc_0153.jpg
https://www.yenko.net/ubbthreads/pics...5-dsc_0002.jpg
Here are a few of a 1969 06A SS Camaro we are restoring. The colors were duplicated as close as possible..BKH

Re: PRIMER COLOR


Bottom of my Z was light grey down the tunnel and under the gas tank. Burgundy over spray went almost to the tunnel. https://www.yenko.net/ubbthreads/pics...123_224542.jpg
https://www.yenko.net/ubbthreads/pics...123_224643.jpg
https://www.yenko.net/ubbthreads/pics...123_224506.jpg
https://www.yenko.net/ubbthreads/pics...123_224713.jpg
