MosportGreen66 11-21-2016 04:13 PM

Buick and Chevelle mirrors

Hi Guys, is there a difference between a remote mirror for a 69 Chevelle and the same for a 69 Buick? I know the higher end Buicks mirrors had the logo on it but I am referring only to the more entry level one.

Thanks for your feedback.

Regards,
Dan

Woj 11-21-2016 04:31 PM

Re: Buick and Chevelle mirrors

I've pulled a few from 68/69 Buick A bodys in the past and found them to be the same as the A body Chevys. The length of the adjuster cable varies on these.

Phil Woj.

MosportGreen66 11-21-2016 06:05 PM

Re: Buick and Chevelle mirrors

Thanks Phil and sorry we missed eachother @ MCACN

I'll post some pics as they come to me...

Dan

MosportGreen66 11-21-2016 06:49 PM

Re: Buick and Chevelle mirrors

2 Attachment(s)
Here is what is said to be correct for 1968-1972/Chevelle. Can you guys confirm that to me?

Thanks,
Dan

Mirror #1

MosportGreen66 11-21-2016 07:07 PM

Re: Buick and Chevelle mirrors

3 Attachment(s)
Mirror #2

Should it have the drain hole on the bottom?

Thanks,
Dan

L78steve 11-21-2016 08:29 PM

Re: Buick and Chevelle mirrors

I have a NOS mirror same as your #2. Its in a GM box part number 9822423 but must be the incorrect box. That number comes up as a Bullet mirror.
Hopefully someone can answer this question.

bbbentley 11-21-2016 09:12 PM

Re: Buick and Chevelle mirrors

Mirror #1 = 70-72 A body, #2 looks like the correct one or close (base should face fwd. and come to a point).

Steve-most probably someone put a "bullet' style on their car and put the old chrome one in the box that the bullet one came in?

Woj 11-21-2016 09:56 PM

Re: Buick and Chevelle mirrors

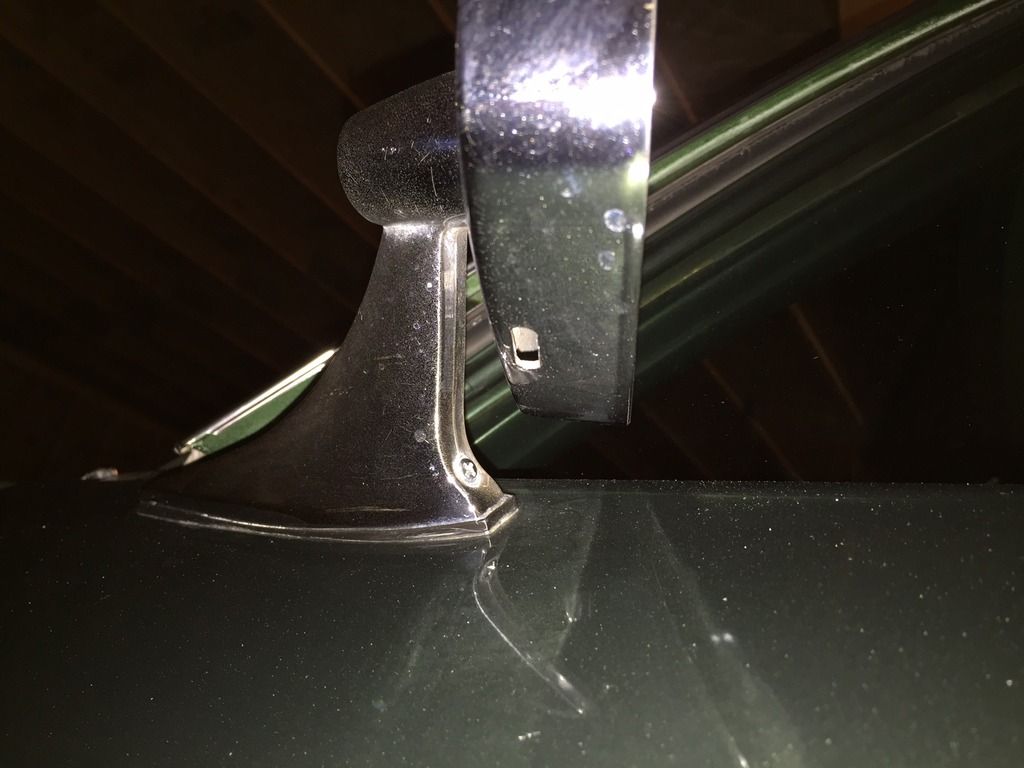

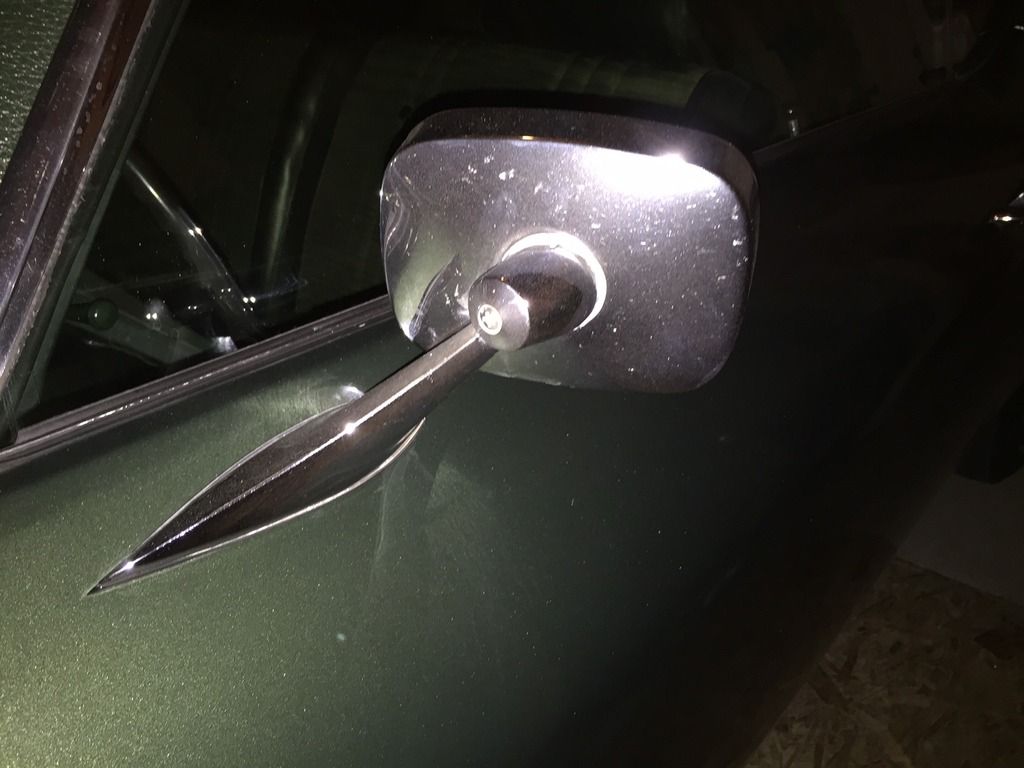

Here's the one factory installed on my 69 Malibu. Same as #2 above. Which I also believe to be the same for 1968. Can't say for sure on 70 and up.

Phil

http://i262.photobucket.com/albums/i...psjhzb6e39.jpg

http://i262.photobucket.com/albums/i...pswdjbsq6d.jpg

http://i262.photobucket.com/albums/i...psju8hwfbp.jpg

68l30 11-21-2016 11:32 PM

Re: Buick and Chevelle mirrors

FWIW, 68 used a 3 piece mirror. There is a adjusting ring between the mirror head and the mounting arm, this allows it to pivot and fit multiple models depending on which notch is used. This is a one year only mirror.

Example. http://m.ebay.com/itm/172354321219?_...25.m3641.l6368


BIG

MosportGreen66 11-22-2016 12:22 AM

Re: Buick and Chevelle mirrors

you guys are the best... thanks very much!

Phil - the pics were exactly what I needed and I was able to identify an original thanks to them.

Regards,
Dan
