I.D. Bellhousing

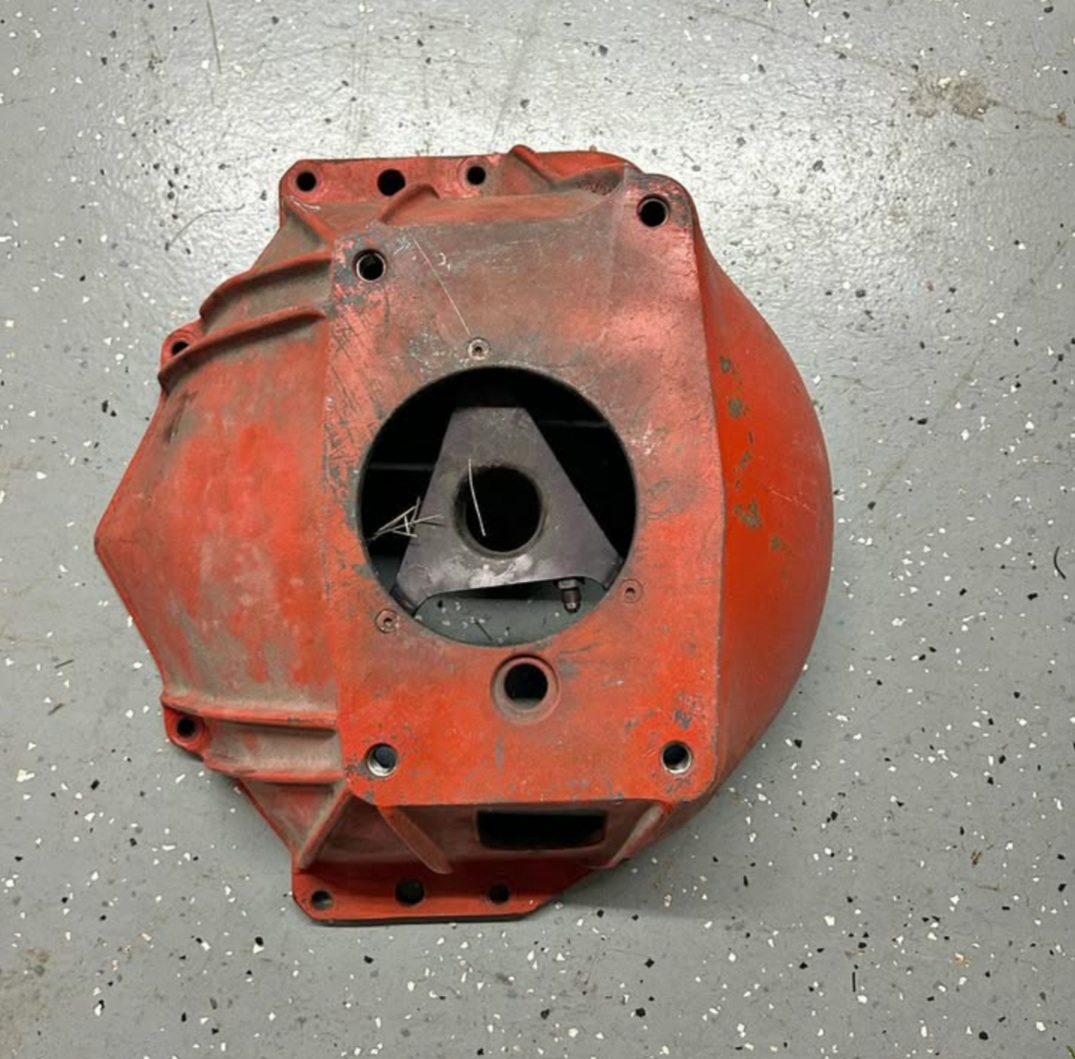

Looking for info on this 1-piece aluminum bell. Looks to have a drain hole of about 1" diameter, possibly added. Owner is selling as a sbc bell and no other info from him. Thanks for any help you can provide, I appreciate it.
Dave
|
|
#2
06-17-2025, 11:20 PM
|
||||
|
||||
|
Looks like an old truck bell. Size of the pilot hole is too large for a car and the 3 point throw out bearing bracket is nothing I've ever seen on a car bell, but never say never....
__________________
Mitch 1970 Chevelle SS 1966 Chevelle SS 1967 Camaro ss/rs 1938 Business coupe, street rod 2000 FXSTS, original owner, 13k miles
|
|
#3
06-18-2025, 11:56 AM
|
||||
|
||||
|
Looks like a hydraulic TOB. The hole is probably a clutch inspection hole instead of a drain hole.
__________________
Freddie 1969 Camaro RS/SS396 (427) 4 speed
|
| The Following User Says Thank You to big gear head For This Useful Post: | ||
DAVE H (06-18-2025) | ||
|
#4
06-18-2025, 01:17 PM
|
|||
|
|||
|
Thanks for the replies. The pilot hole (to me) appears to be standard diameter. They did mention that it has a "tilton" style TOB for what it's worth and believe it to be aftermarket. I've been able to "categorize" bellhousings from a distance (swap meet) by visually measuring the distance from the edge of the pilot to the edge of the machined pivot hole.. a standard passenger car bell will have a distance of about 3/16"-1/4". A small pilot bell from '63 will have nearly a 1/2" distance. The truck bell (from my experience) has virtually no gap between the pilot and the pivot hole. Also, this has no reinforcement rib along the starter area like a 621 vs a 403.
Dave
|
 |
|
|
