  #181
Old 06-11-2025, 12:52 AM
roadster roadster is online now
Senior Member

Join Date: Jul 2015
Location: Ohio
Posts: 100
Thanks: 418
Thanked 500 Times in 72 Posts
Default Leak

Nice car , before you change pan gasket look at selector shaft seal . Common leak , torque converter drain back into transmission causes fluid to get higher and higher the longer it sits the fuller the transmission gets till it reaches selector shaft seal/linkage and ends up on the ground . Not difficult to replace , have to remove pan then selector shaft to access seal . The other most common leak is dipstick tube o ring . Gravity causes pan gasket to appear to be leaking . Brake clean can be very helpful pinpointing leak .Also warm hot fluid thins out and can help locate leak quicker after brake cleaning suspected cause of leak .
Reply With Quote
  #182
Old 06-11-2025, 02:24 AM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

Yeah, I was looking online for C6 common leaks. I think the sitting for 4 years and the resultant draining of the fluid into the main area of the case is what caused the leakage, as you said. There were initially some drip marks around the selector shaft as well as the entire pan gasket. I ended up tightening the pan bolts and brake-cleaning the entire area. Haven't had any more drips since then.

Here's a couple shots after brake cleaning the entire area. BTW, is that black plastic spacer on the selector shaft supposed to have that slot in it? Or is it a crack?
Attached Images


Last edited by njsteve; 06-11-2025 at 02:31 AM.
Reply With Quote
The Following User Says Thank You to njsteve For This Useful Post:
PeteLeathersac (06-18-2025)
  #183
Old 06-11-2025, 04:32 AM
roadster roadster is online now
Senior Member

Join Date: Jul 2015
Location: Ohio
Posts: 100
Thanks: 418
Thanked 500 Times in 72 Posts
Default

The plastic piece is seldom seen probably a Lincoln item for protecting the o ring behind kick down lever and am sure it came with the split or crack . There is a small o ring on the kick down shaft they didn’t leak very often and very easy to change , if you remove nut holding lever to shaft the o ring is behind plastic piece. If car sits for a week or longer the converter starts to Fill the transmission more and more that is why so common for automatics to only leak after sitting extended period . Factory used cork gasket dry just want to make sure pan rail straight from over tightening pan bolts over the years (torque to 16 ft lbs) The kick down shaft contacts valve in valve body past 3/4 throttle or so and only moves 1/2 inch or so is spring loaded . Those are neat cars , friend of family bought new 2 door like yours , except his was a 74 give or take a couple years .

Last edited by roadster; 06-11-2025 at 01:24 PM.
Reply With Quote
The Following User Says Thank You to roadster For This Useful Post:
PeteLeathersac (06-18-2025)
  #184
Old 06-17-2025, 12:46 PM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

Yesterday I brought the Lincoln in for a long delayed front end alignment. I had replaced the entire front end with new parts 7 years ago and assembled it back together totally by eye. It tracked dead straight with zero pull so I never wasted the time to get an official alignment done when I had the old tires on it. Since I just bought new tires and I had a free day, I brought her in. After a few minutes the tech comes in and says "You really want me to charge you for this?"

It turns out that by some miracle I had gotten everything within the green spec zone except the right front toe which was off by 1/16". I laughed and said yes, please adjust as needed and print me out a before and after spec sheet. I was happy to pay him the $129 since he seemed to enjoy working on something way out of the ordinary. I even bought the correct vintage Snap-On WA-171 alignment tool on ebay for $25 but he ended up not needing to use it. The tool has a point at the tip that slips into an alignment hole in the frame next to the A-arm and the claw moves the A-arm in or out depending on what you need to adjust.
Attached Images


Last edited by njsteve; 06-17-2025 at 01:10 PM.
Reply With Quote
The Following 5 Users Say Thank You to njsteve For This Useful Post:
L78_Nova (06-18-2025), olredalert (06-17-2025), PeteLeathersac (06-18-2025), RPOLS3 (06-17-2025), SS427 (06-17-2025)
  #185
Old 06-29-2025, 12:22 AM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

Took Grampa's Lincoln to the local cruise night today. I was able to deliver Kevin's Camaro grill, that I promised him a few weeks ago before the last show was rained out. You definitely know your car is a wide-load when you can fit an entire 69 Camaro grill, flat in the trunk with a foot to spare on either side.

A buddy also showed up in his 65 restomod Vette, so I had some more company as well.

I gotta say, the old Lincoln seems to attract a helluva lot more attention than any of my musclecars. Everyone that came by had a dad or grandad story of having one in the family. I let a bunch of people sit in the back and reminisce on the rear sofa.
Attached Images

Reply With Quote
The Following 5 Users Say Thank You to njsteve For This Useful Post:
big gear head (06-29-2025), Dave Rifkin (06-29-2025), L_e_e (06-29-2025), olredalert (06-29-2025), RPOLS3 (06-30-2025)
  #186
Old 06-29-2025, 12:49 AM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

Perusing the interwebs I found some more old historical info on the Golden Anniversary (or more like the Guldens Mustard Anniversary, given the exact color match to the spicy brown condiment). Here you go:
Attached Images

Reply With Quote
The Following 3 Users Say Thank You to njsteve For This Useful Post:
L_e_e (06-29-2025), olredalert (06-29-2025), PeteLeathersac (06-29-2025)
  #187
Old 06-29-2025, 12:50 AM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

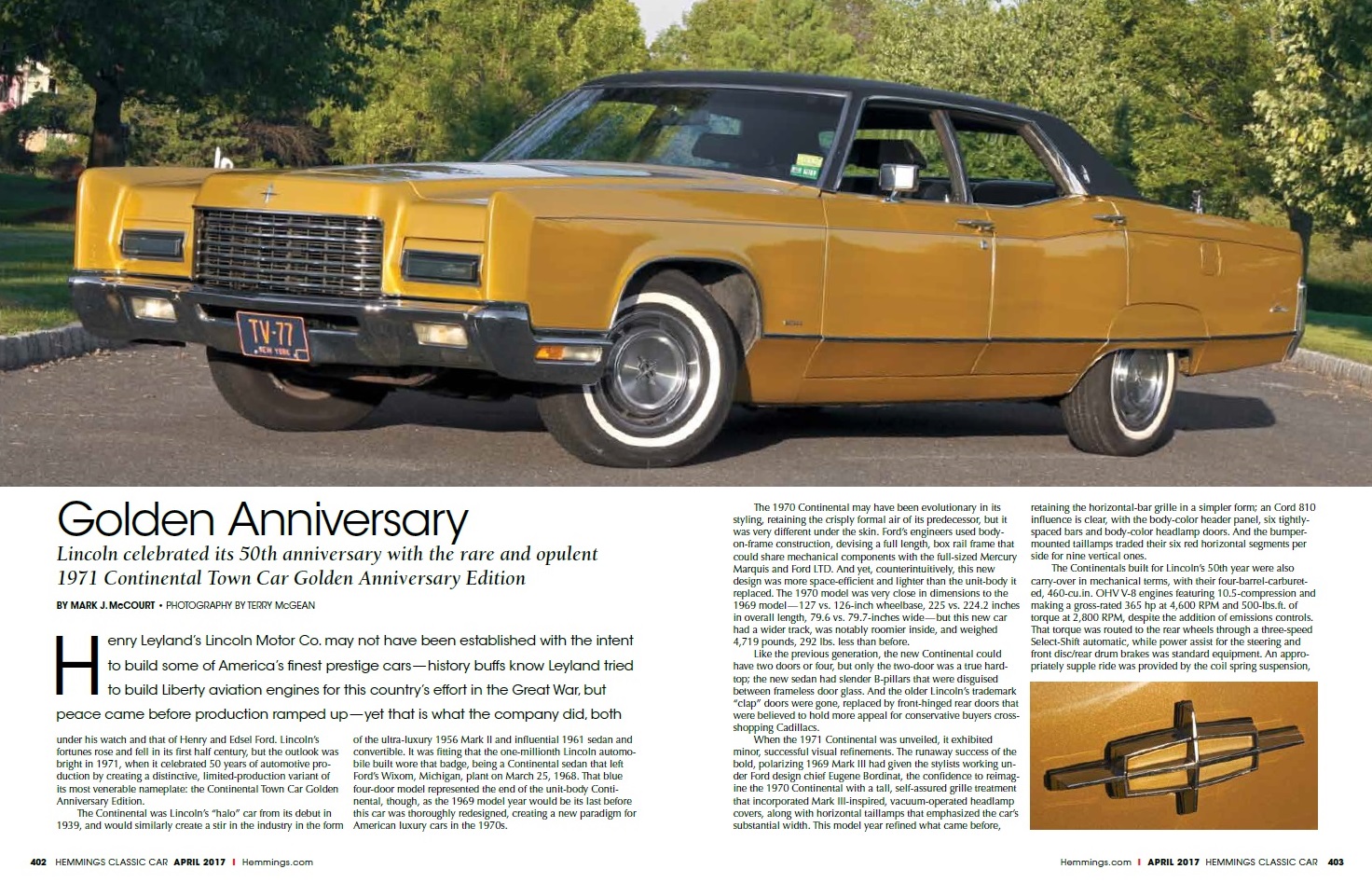

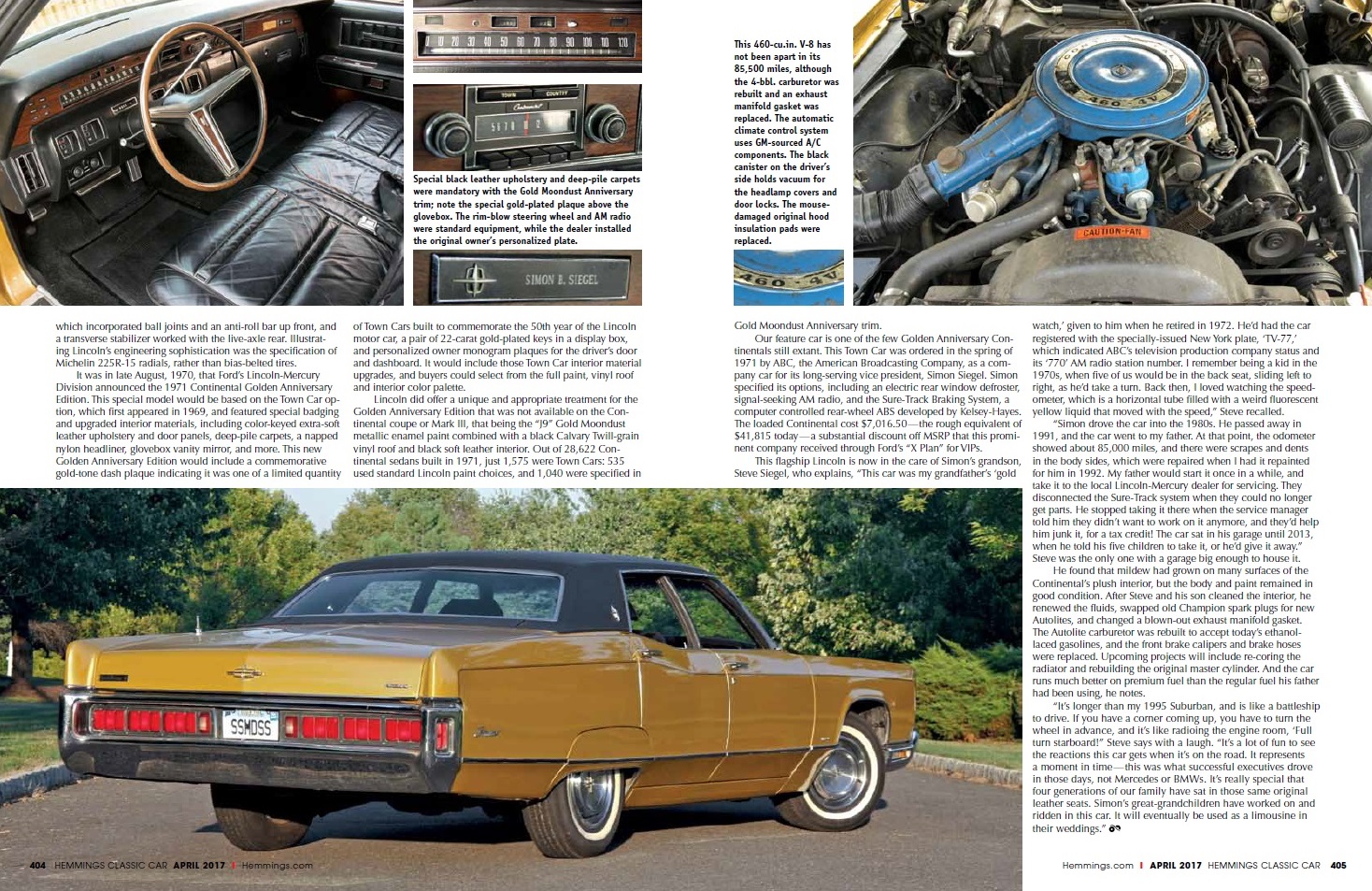

And a better scan of the original 2017 Hemmings Classic Car article. Funny thing is that when you google 1971 Golden Anniversary Lincoln, this is the very first thing that pops up! We're famous!
Attached Images


Last edited by njsteve; 06-29-2025 at 01:19 AM.
Reply With Quote
The Following 6 Users Say Thank You to njsteve For This Useful Post:
big gear head (06-29-2025), Dave Rifkin (06-29-2025), L_e_e (06-29-2025), olredalert (06-29-2025), PeteLeathersac (06-29-2025), RPOLS3 (06-30-2025)
  #188
Old 06-29-2025, 04:08 PM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

Today I took the old girl out for an early morning cars-n-coffee in Millstone, NJ. 100-mile round trip. Drove very smoothly. A/C worked fine. No issues other than the gas gauge moving toward "E" very rapidly. On the way back I was surrounded and overtaken on I-95 by a gaggle of tiny JDM cars on their way to a show somewhere in Central NJ. It was hysterical. It was like a whale shark surrounded by a school of remoras. I hit the gas to get over into the far right lane and the Lincoln pulled the group along like it was caught in the riptide current.

Just need another 25 mile trip and I'll finally have an entire 1,000 miles on the engine I rebuilt in 2018.
Attached Images


Last edited by njsteve; 06-29-2025 at 04:12 PM.
Reply With Quote
The Following 4 Users Say Thank You to njsteve For This Useful Post:
L_e_e (06-29-2025), olredalert (06-29-2025), PeteLeathersac (06-30-2025), RPOLS3 (06-30-2025)
  #189
Old 06-30-2025, 04:23 PM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

And...the mission creep continues. When I got home yesterday I decided to pull the interior for a deep cleaning that has never been done. And I did have one young kid stick their head in the car at the show and say to their dad "This car smells like old people". LOL
Due to all the years of storage it has had its battles with mice, mildew and mold. I pulled everything out and started cleaning. Found two enormous mouse nests in the back seat and several petrified mouse mummies under the carpet.
Attached Images

Reply With Quote
The Following 2 Users Say Thank You to njsteve For This Useful Post:
big gear head (06-30-2025), scuncio (06-30-2025)
  #190
Old 06-30-2025, 04:30 PM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,339
Thanks: 8
Thanked 2,672 Times in 829 Posts
Default

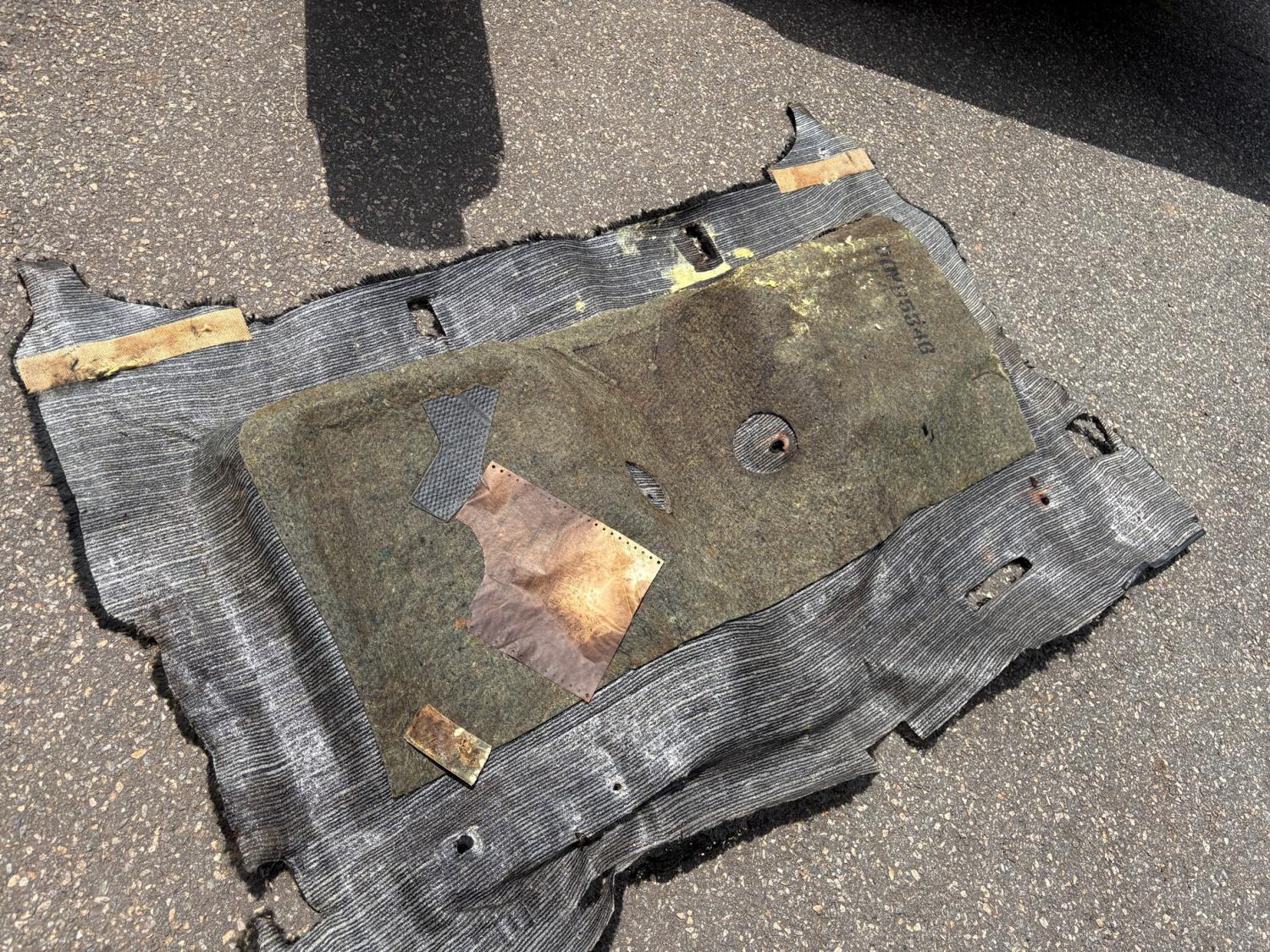

Found several broadcast sheets including one that said "REWORKED DOORS" on it. I am borrowing the wife's carpet cleaner today to shampoo the carpets after I spent an hour vacuuming them out and beating them with a stick to get all the sand out. And the mouse nests (next to a piece of 2x4 for scale).
Attached Images


Last edited by njsteve; 06-30-2025 at 10:22 PM.
