Day 2 67 Camaro restoration

[Chuck_Burg]

For the heart of the beast I visited Jim VanGordon of VanGordon Racing Engines in Upland, CA. We discussed various ideas but ultimately decided on a pump gas 496. Started with a solid 512 block and good pair of 781 oval ports. Jim assured me the 781s would be the way to go after his partner and legendary Blown Fuel Altered pilot, Mikio Yoshioka, did his magic to them. He drove the Stone T altered back in the 60s. NEAT STUFF!

Eagle rotating assembly and Mahle pistons make up the rotating assembly. The squeeze came out to 9.8:1. Valve timing is controlled with a Comp roller with .615" lift on intake and exhaust 240*@.050 intake and 250* @.050 exhaust on 112LSA. The old school Torker was a nice eBay find and was ported and port matched to the 781 heads. MSD dizzy and coil for the ignition and an 850 DP Holley tops it off.

Engine was ran on a stand but not dynoed. We will strap it to the chassis dyno at a later date.

[Xplantdad]

Originally Posted by Chuck_Burg

For the heart of the beast I visited Jim VanGordon of VanGordon Racing Engines in Upland, CA. We discussed various ideas but ultimately decided on a pump gas 496. Started with a solid 512 block and good pair of 781 oval ports. Jim assured me the 781s would be the way to go after his partner and legendary Blown Fuel Altered pilot, Mikio Yoshioka, did his magic to them. He drove the Stone T altered back in the 60s. NEAT STUFF!

Eagle rotating assembly and Mahle pistons make up the rotating assembly. The squeeze came out to 9.8:1. Valve timing is controlled with a Comp roller with .615" lift on intake and exhaust 240*@.050 intake and 250* @.050 exhaust on 112LSA. The old school Torker was a nice eBay find and was ported and port matched to the 781 heads. MSD dizzy and coil for the ignition and an 850 DP Holley tops it off.

Engine was ran on a stand but not dynoed. We will strap it to the chassis dyno at a later date.

Very nice! I loved my Torker 2-0 on my Nova back in the day...1971 402 9.8:1, Crane Fireball cam, 3310-2 Holley

[L_e_e]

Originally Posted by Chuck_Burg

For the heart of the beast I visited Jim VanGordon of VanGordon Racing Engines in Upland, CA. We discussed various ideas but ultimately decided on a pump gas 496. Started with a solid 512 block and good pair of 781 oval ports. Jim assured me the 781s would be the way to go after his partner and legendary Blown Fuel Altered pilot, Mikio Yoshioka, did his magic to them. He drove the Stone T altered back in the 60s. NEAT STUFF!

Eagle rotating assembly and Mahle pistons make up the rotating assembly. The squeeze came out to 9.8:1. Valve timing is controlled with a Comp roller with .615" lift on intake and exhaust 240*@.050 intake and 250* @.050 exhaust on 112LSA. The old school Torker was a nice eBay find and was ported and port matched to the 781 heads. MSD dizzy and coil for the ignition and an 850 DP Holley tops it off.

Engine was ran on a stand but not dynoed. We will strap it to the chassis dyno at a later date.

You are gonna be happy with that combo, it makes for a great street engine.
I did a very similar build, except 12.5:1, NOS ZL-1 9180 cam and with the Angelucci ported 781's it RPM's like a 2-stroke weedwacker and makes power from idle to redline.

[Chuck_Burg]

We are making progress! Trying to keep up with Dave's Crusty Cuda

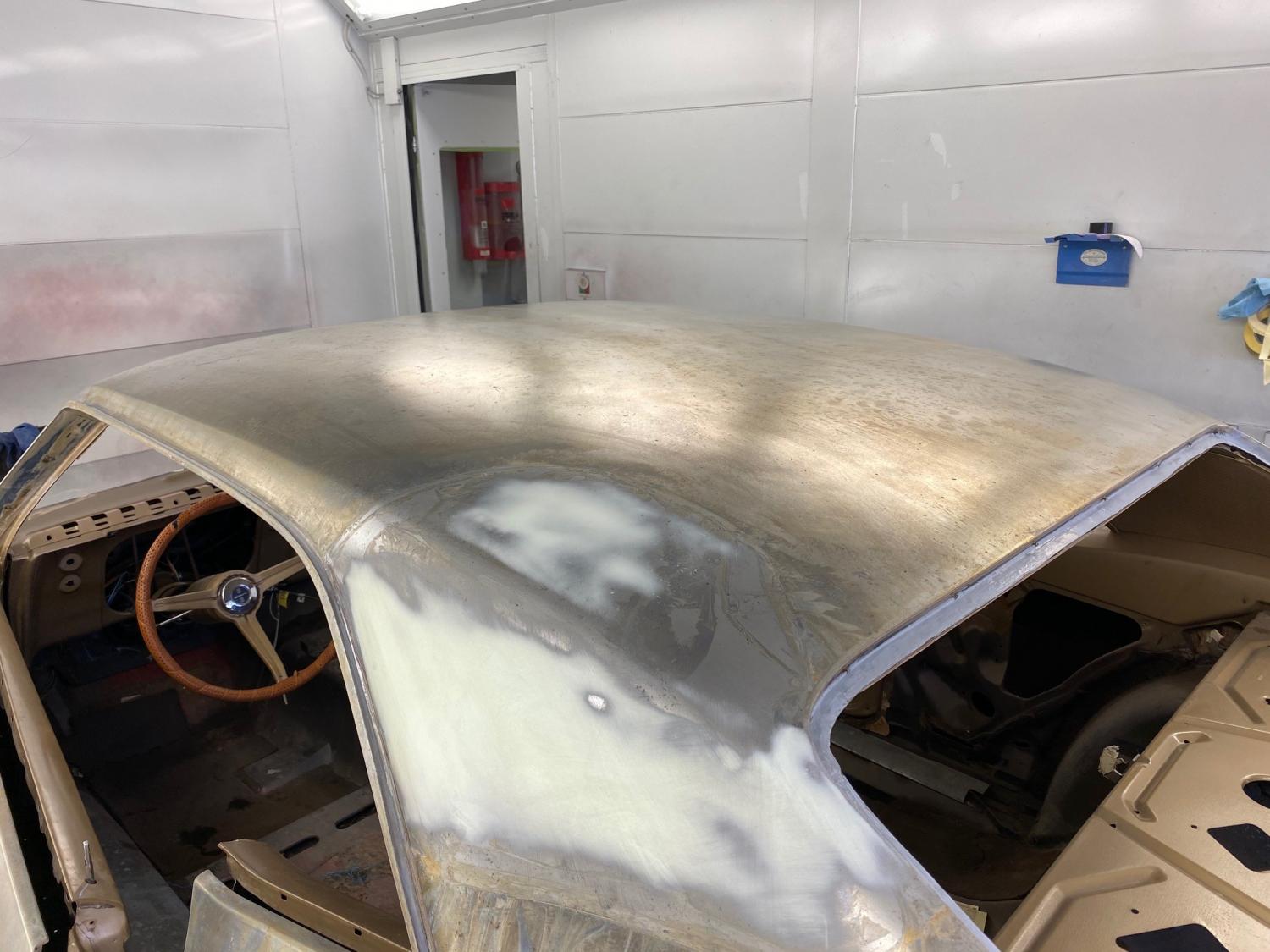

We sanded the original paint off using a DA with 80 grit. We then sanded the entire body with 220. I also removed all the seam sealer on the firewall and replaced it with brand new seam sealer and replicated the factory installation method (stiff brush) haha! My PPG rep told me about a metal cleaner and neutralizer call SX579. This stuff is killer!!! Spray your bare metal and it'll make it look like an anodizing job gone wrong! He said this would be the saving grace for the pesky rust under my paint due to the original owners tarp preventing moisture from escaping.... He also supplied us with the two part epoxy primer and hardener. Primer pics soon! This is where I'm at in the build, it's now up to date for all you to follow. Thanks for the support!

[mockingbird812]

Coming along nicely! Thanks for the update and keep the pix a comin’!
