  #1
Old 10-20-2005, 05:39 AM
tjs44 tjs44 is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: long beach,ca
Posts: 957
Thanks: 3
Thanked 284 Times in 106 Posts
Default Re: TUNNEL PORT RA V

steve,get the mar 1968 hotrod if you really want to see what the factory had on the drawing board.Mac is on the cover with many great engines along with many internals on the inside.Tom
Reply With Quote
  #2
Old 10-20-2005, 06:29 AM
Steve_Hoog's Avatar
Steve_Hoog Steve_Hoog is offline
Senior Member

Join Date: Nov 2003
Location: Tulsa OK
Posts: 1,275
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

I'm on it!
Reply With Quote
  #3
Old 10-20-2005, 11:03 PM
Steve_Hoog's Avatar
Steve_Hoog Steve_Hoog is offline
Senior Member

Join Date: Nov 2003
Location: Tulsa OK
Posts: 1,275
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

Tom

Do you know if the RAV had a unique oil filter adapter in relation to the IV and the rest of the Pontiac adapters?
Reply With Quote
  #4
Old 10-19-2005, 02:12 AM
Steve_Hoog's Avatar
Steve_Hoog Steve_Hoog is offline
Senior Member

Join Date: Nov 2003
Location: Tulsa OK
Posts: 1,275
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

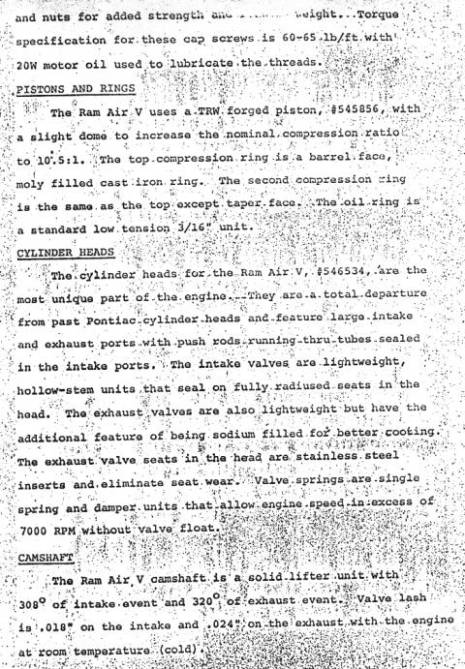

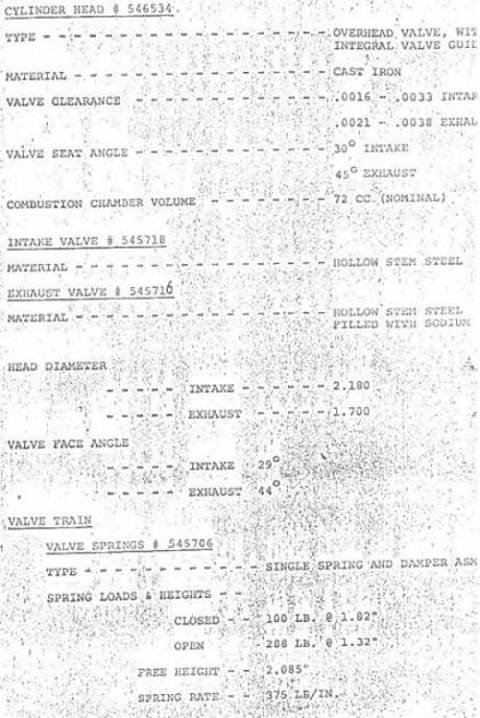

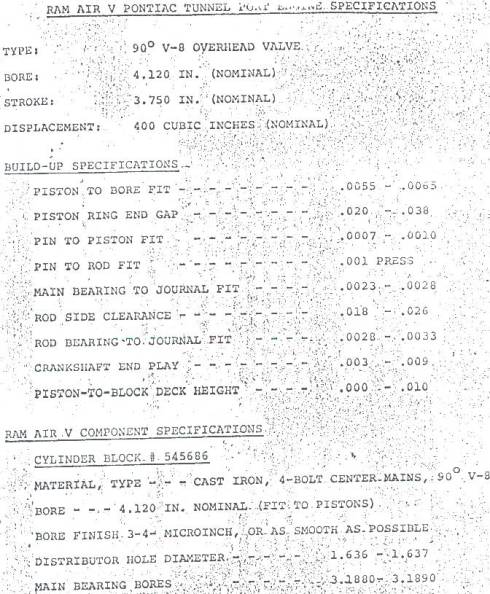

Here is the goods on the Pontiac Hemi, looks like it had some RAV stuff or ideas.



Page 44
Page 45
Page 46
Page 47
Page 48



Reply With Quote
  #5
Old 10-19-2005, 02:24 AM
Steve_Hoog's Avatar
Steve_Hoog Steve_Hoog is offline
Senior Member

Join Date: Nov 2003
Location: Tulsa OK
Posts: 1,275
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

In this July 1969 Super Stock, it is claimed that this Judge is "the one" that was tested in Florida with the RAV motor. Take a close look at the two engine shots included within the article, take a close look at the shroud on page 35 and the sub frame on 70 and see what kind of car you think the engine shots are from. Notice also the extra webbing in the lifter valley which makes it a RAV block.



Full Size Cover

Page 34
Page 35
Page 70




Reply With Quote
  #6
Old 08-28-2005, 11:57 PM
GOAT72 GOAT72 is offline
Senior Member

Join Date: Dec 2003
Location: Culpeper County, VA
Posts: 362
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

Deleted per Goat72
Reply With Quote
  #7
Old 08-29-2005, 12:01 AM
GOAT72 GOAT72 is offline
Senior Member

Join Date: Dec 2003
Location: Culpeper County, VA
Posts: 362
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

This proof sheet shows both cars staged and/or running at Miami Dragway in Feb. of 1969.




Reply With Quote
  #8
Old 08-29-2005, 09:19 PM
JLP JLP is offline
Senior Member

Join Date: Nov 2003
Location: Puyallup, WA
Posts: 109
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

You may want to go here for more information as this was discussed earlier and some of the pics you are showing were either in mag's back in the day and in 1 case they were in a Pontiac book put out by Motion in Baldwin, NY. I think I sent someone (Jeff?) or Steved the pic's I have.

https://www.yenko.net/ubbthreads/showflat...true#Post154491
__________________
JLP
Reply With Quote
  #9
Old 08-30-2005, 02:08 AM
Steve_Hoog's Avatar
Steve_Hoog Steve_Hoog is offline
Senior Member

Join Date: Nov 2003
Location: Tulsa OK
Posts: 1,275
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

I have all those pics and more, but not from anyone in Yenko.

Keith... I also have engine shots. The Judge has what appears to be a 68 RAII motor; also if I'm not mistaken without my material in front of me, it is the one with the prototype Judge spoiler that isn't quite like production.

I have heard several people claim it is a Wangers conversion from a Limelight green regular 69. Does that fall in line with what you have been told?
Reply With Quote
  #10
Old 08-30-2005, 06:37 AM
Steve_Hoog's Avatar
Steve_Hoog Steve_Hoog is offline
Senior Member

Join Date: Nov 2003
Location: Tulsa OK
Posts: 1,275
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: TUNNEL PORT RA V

I have three or four different sets of pics, different race sessions. The Judge in the set you posted definitely has a pic from the rear showing the prototype spoiler.

From another session; again with the blue car and prototype spoiler, an engine shot clearly shows what would turn out to be a RAII if the codes could be read.

Nothing of significance, just interesting how they swapped engines in and out of those cars like running water.
Reply With Quote
