  #1
Old 08-06-2017, 07:16 PM
Lee Stewart's Avatar
Lee Stewart Lee Stewart is offline
Senior Member

Join Date: Mar 2017
Location: ABQ, New Mexico
Posts: 36,633
Thanks: 3,506
Thanked 136,542 Times in 22,784 Posts
Default

beautiful work!

If you are going for "factory built" the master cylinder and cover should be painted gloss black.
Reply With Quote
  #2
Old 08-06-2017, 10:33 PM
sixt9rsx33 sixt9rsx33 is offline
Yenko Contributing Member

Join Date: Jul 2008
Location: NC
Posts: 1,320
Thanks: 51
Thanked 592 Times in 168 Posts
Default

Quote:
Originally Posted by Lee Stewart View Post
beautiful work!

If you are going for "factory built" the master cylinder and cover should be painted gloss black.
Hey Lee thanks. On a 1969 drum brake car the cover is yellow zinc and the body is cast natural. On a 1969 disc brake car everything including booster is painted black

Lawrence
__________________
65 Corvette Coupe L78
67 427/390 Vette Coupe unrestored
67 L-79 Vette roadster (Top Flight)
69 L71 Roadster Survivor
69 L46 Roadster Survivor (Sold)
69 Z/28 RS (Sold)
69 Dodge Charger R/T
70 W30 442 Auto Air Survivor
2016 Z06 Coupe M7
70 AAR Cuda (Sold)
69 L78 Chevelle (Sold)
Reply With Quote
The Following User Says Thank You to sixt9rsx33 For This Useful Post:
Lee Stewart (08-07-2017)
  #3
Old 08-06-2017, 10:36 PM
sixt9rsx33 sixt9rsx33 is offline
Yenko Contributing Member

Join Date: Jul 2008
Location: NC
Posts: 1,320
Thanks: 51
Thanked 592 Times in 168 Posts
Default

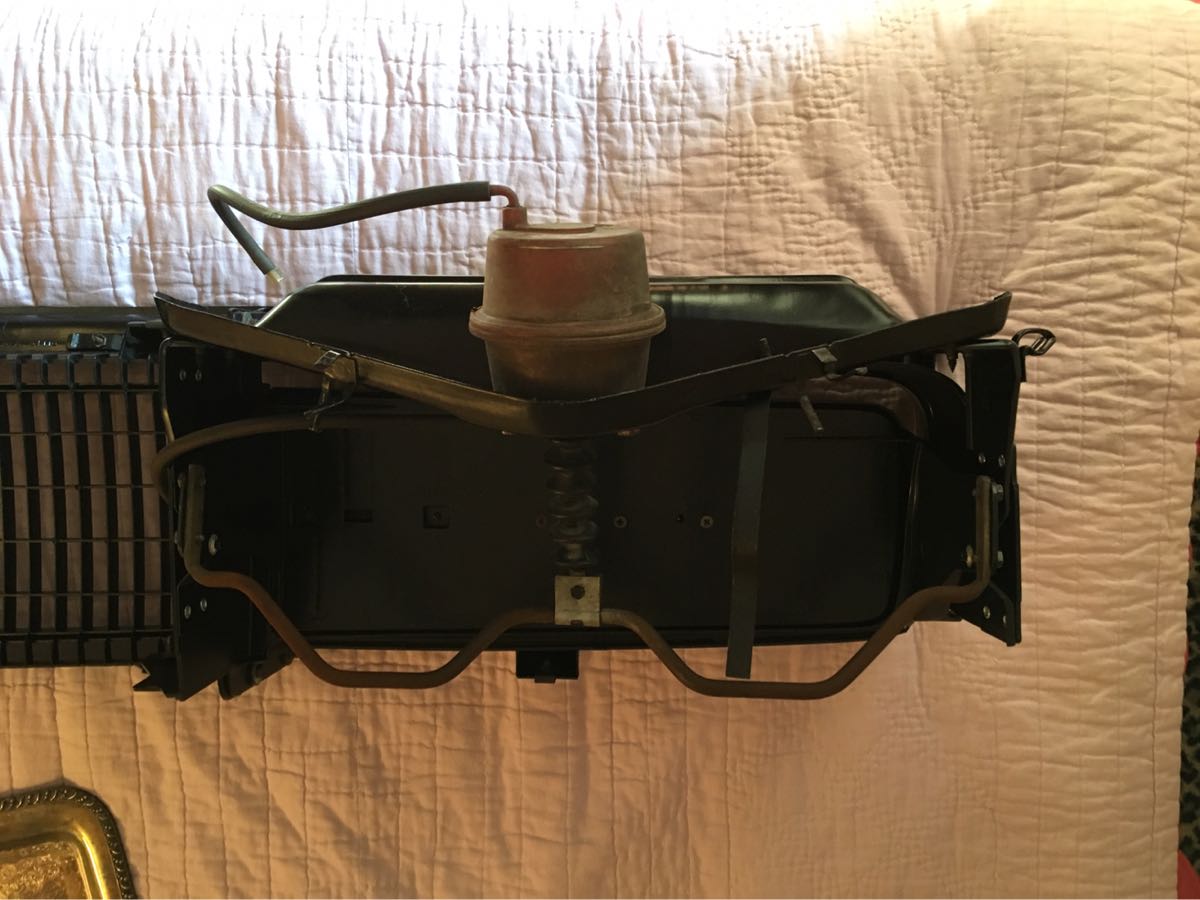

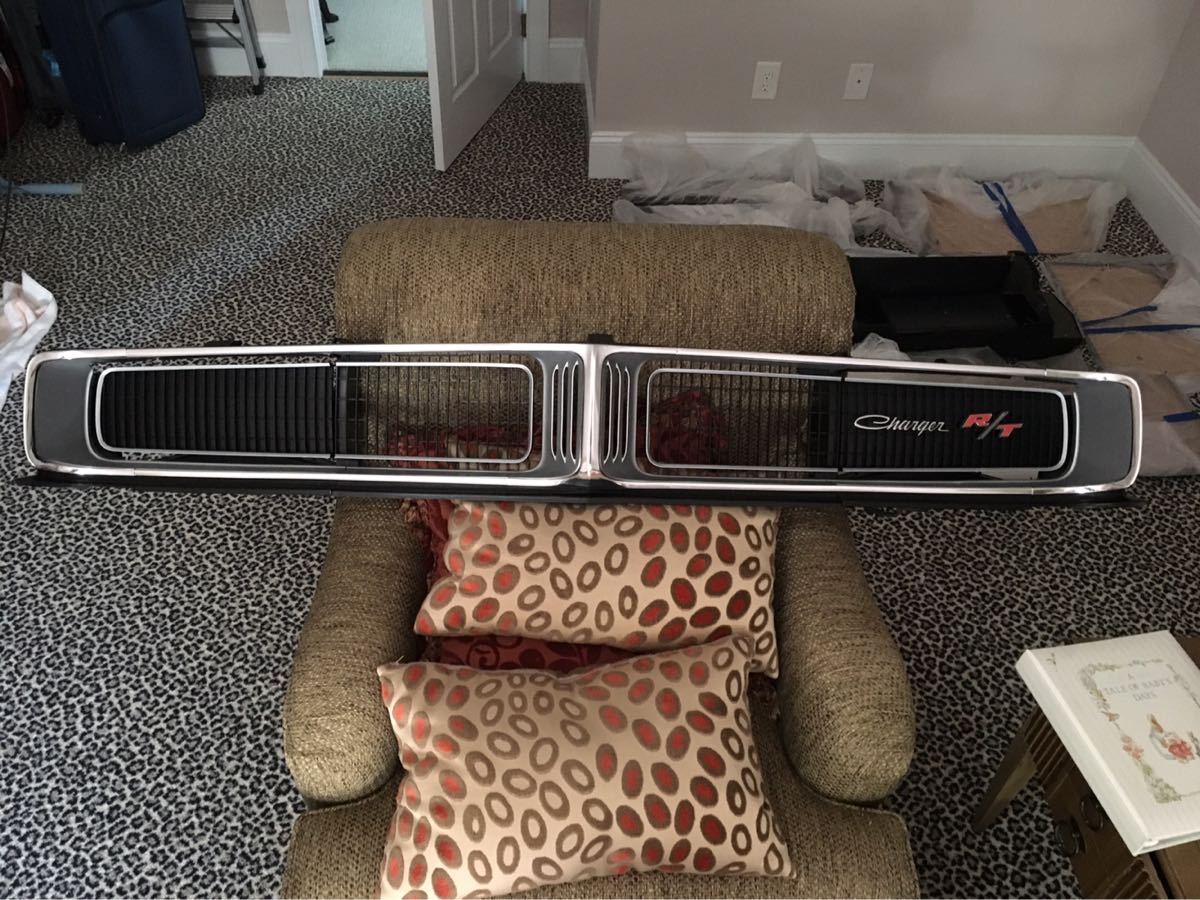

Grill is ready to be installed in the frame. The factory actuators, hardware and fasteners all re used.
Attached Images

__________________
65 Corvette Coupe L78
67 427/390 Vette Coupe unrestored
67 L-79 Vette roadster (Top Flight)
69 L71 Roadster Survivor
69 L46 Roadster Survivor (Sold)
69 Z/28 RS (Sold)
69 Dodge Charger R/T
70 W30 442 Auto Air Survivor
2016 Z06 Coupe M7
70 AAR Cuda (Sold)
69 L78 Chevelle (Sold)
Reply With Quote
  #4
Old 08-06-2017, 11:30 PM
mockingbird812's Avatar
mockingbird812 mockingbird812 is offline
Yenko Contributing Member

Join Date: Jun 2004
Location: Dayton
Posts: 14,408
Thanks: 909
Thanked 801 Times in 484 Posts
Default

Hide-aways are cool!!!!!!
__________________
Sam...

Reply With Quote
  #5
Old 08-19-2017, 11:44 PM
sixt9rsx33 sixt9rsx33 is offline
Yenko Contributing Member

Join Date: Jul 2008
Location: NC
Posts: 1,320
Thanks: 51
Thanked 592 Times in 168 Posts
Default

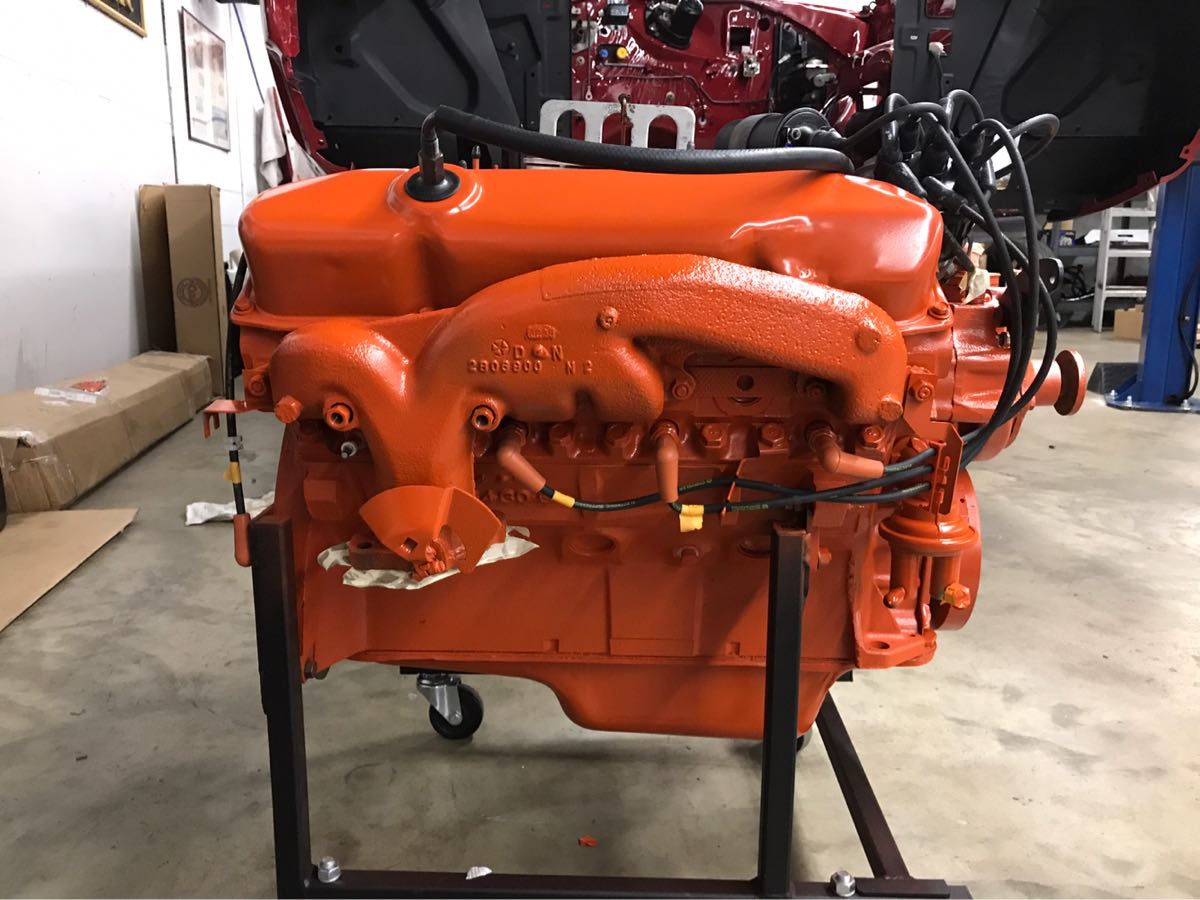

Coming along...lots of orange paint...
Attached Images

__________________
65 Corvette Coupe L78
67 427/390 Vette Coupe unrestored
67 L-79 Vette roadster (Top Flight)
69 L71 Roadster Survivor
69 L46 Roadster Survivor (Sold)
69 Z/28 RS (Sold)
69 Dodge Charger R/T
70 W30 442 Auto Air Survivor
2016 Z06 Coupe M7
70 AAR Cuda (Sold)
69 L78 Chevelle (Sold)

Last edited by sixt9rsx33; 08-19-2017 at 11:47 PM.
Reply With Quote
  #6
Old 08-20-2017, 01:42 PM
sixt9rsx33 sixt9rsx33 is offline
Yenko Contributing Member

Join Date: Jul 2008
Location: NC
Posts: 1,320
Thanks: 51
Thanked 592 Times in 168 Posts
Default

Thanks guys....appreciate it..

I am trying to put the car back to OEM specs. If anyone sees anything incorrect please let me know. All comments are welcome. This is my first Mopar Resto so a slow go to say the least. A12 Pilot has been a ton of help thus far. Thanks Dave!

Lawrence
__________________
65 Corvette Coupe L78
67 427/390 Vette Coupe unrestored
67 L-79 Vette roadster (Top Flight)
69 L71 Roadster Survivor
69 L46 Roadster Survivor (Sold)
69 Z/28 RS (Sold)
69 Dodge Charger R/T
70 W30 442 Auto Air Survivor
2016 Z06 Coupe M7
70 AAR Cuda (Sold)
69 L78 Chevelle (Sold)

Last edited by sixt9rsx33; 08-20-2017 at 01:46 PM.
Reply With Quote
  #7
Old 08-20-2017, 01:52 PM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,396
Thanks: 8
Thanked 2,826 Times in 867 Posts
Default

Looks beautiful. The only problem area I see is the red paint on the shock absorber bushings on the inner fenders. Need to be natural black rubber with the large cad-plated washer on top.
Attached Images


Last edited by njsteve; 08-20-2017 at 01:55 PM.
Reply With Quote
  #8
Old 08-21-2017, 01:38 AM
sixt9rsx33 sixt9rsx33 is offline
Yenko Contributing Member

Join Date: Jul 2008
Location: NC
Posts: 1,320
Thanks: 51
Thanked 592 Times in 168 Posts
Default

Thanks Steve. I failed to mention that I had that on my list to correct. Thanks for pointing that out. Please let me know of any other issues as I post more pics.
__________________
65 Corvette Coupe L78
67 427/390 Vette Coupe unrestored
67 L-79 Vette roadster (Top Flight)
69 L71 Roadster Survivor
69 L46 Roadster Survivor (Sold)
69 Z/28 RS (Sold)
69 Dodge Charger R/T
70 W30 442 Auto Air Survivor
2016 Z06 Coupe M7
70 AAR Cuda (Sold)
69 L78 Chevelle (Sold)
Reply With Quote
  #9
Old 09-11-2017, 12:50 PM
cook_dw's Avatar
cook_dw cook_dw is offline
Yenko Contributing Member

Join Date: Oct 2003
Posts: 4,389
Thanks: 672
Thanked 1,725 Times in 660 Posts
Default

Lookin' good. Cant wait to see more progress.
Reply With Quote
  #10
Old 09-11-2017, 06:05 PM
njsteve's Avatar
njsteve njsteve is offline
Yenko Contributing Member

Join Date: Nov 2003
Location: NJUSA
Posts: 8,396
Thanks: 8
Thanked 2,826 Times in 867 Posts
Default

Looks great! I think the red paint should cover all of the face of the drum including the lug nut area where the wheel mounts. On my previous Mopars, that was actually the only place where the red would still remain after a few decades as it was protected from the elements by the wheel face. The cosmoline they used for dipping the lower controls arms in, was a much heavier molasses-ier (if that's actually a word) looking substance. I used spray-on amber rustproofing when I used to do mine. I had to do many coats to get the caramel brown finish correctly.

This stuff is good: https://www.tat-co.com/Products/Repa...r-Rustproofing

Last edited by njsteve; 09-11-2017 at 06:08 PM.
Reply With Quote
