Default Help with Engine detailing 1969 Nova SS

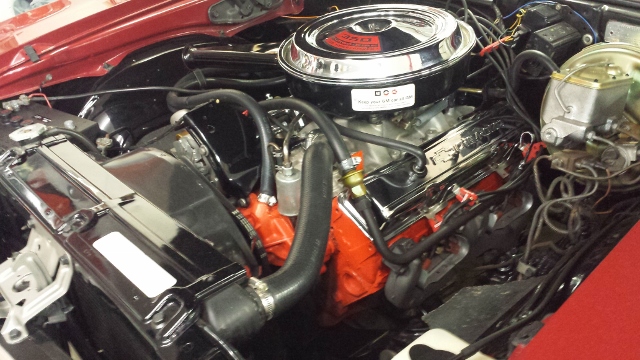

I am looking for help with the proper details on the engine bay of my 1969 Nova SS.
The original owner did detail it back in the early 1980's usung the wrong shades of black and added "dress ups" such as the chrome valve covers and aftermarket intake. I have the originals and will install them soon.
I welcome your thoughts on the Proper details
Thanks in advance...
Attached Images

__________________
I don't hate the rich, And I don't pitty the poor
Reply With Quote
  #2
Old 01-09-2018, 04:07 PM
WILMASBOYL78's Avatar
WILMASBOYL78 WILMASBOYL78 is offline
Yenko Paid Member

Join Date: Jul 2003
Location: new york
Posts: 7,256
Thanks: 0
Thanked 228 Times in 143 Posts
Post 69 Nova...

Here are a few items to consider;

-hose clamps should be the 'tower' style

-master cylinder shown appears to be a 70 style...69 is shaped like a bathtub

-battery cables need to be changed...also, not sure on 69 small block, but I believe the neg. cable bolts to the block, not the alt. bracket..??

-water pump bolts should be painted engine color

-wilma
__________________
02 Berger 380hp #95
Lots of L78 Novas
Join National Nostalgic Nova!
70 Orange Cooler
69 Camaro
Reply With Quote
The Following User Says Thank You to WILMASBOYL78 For This Useful Post:
RAII4speed (01-09-2018)
  #3
Old 01-09-2018, 05:04 PM
olredalert olredalert is offline
Yenko Paid Member

Join Date: Dec 2002
Location: Marine City, Mi.
Posts: 5,802
Thanks: 499
Thanked 261 Times in 195 Posts
Default

----What Tom said, plus, correct looking master cylinders are all over the place, but you need the correct stamping on the machined edge up front. Tom should have an idea what the two letters should be. As well, it would be good to find one dated within the correct parameters. Makes it a bit harder, but ultimately better.
You may already have the correct washers and bolts for the valve covers, but you might not. Ditto on the intake manifold bolts
Can't quite see if the lock tabs are on the exhaust manifold to engine bolts, and are those bolts correct?. The tabs may or may not have been used. I'm not up on Nova stuff anywhere near as much as Tom.....Bill S

Last edited by olredalert; 01-09-2018 at 05:13 PM.
Reply With Quote
The Following User Says Thank You to olredalert For This Useful Post:
RAII4speed (01-09-2018)
  #4
Old 01-09-2018, 05:30 PM
Abiddle Abiddle is offline
Senior Member

Join Date: Oct 2015
Location: Loudon, TN
Posts: 122
Thanks: 8
Thanked 2 Times in 2 Posts
Default Vintage SS350 pic - day1

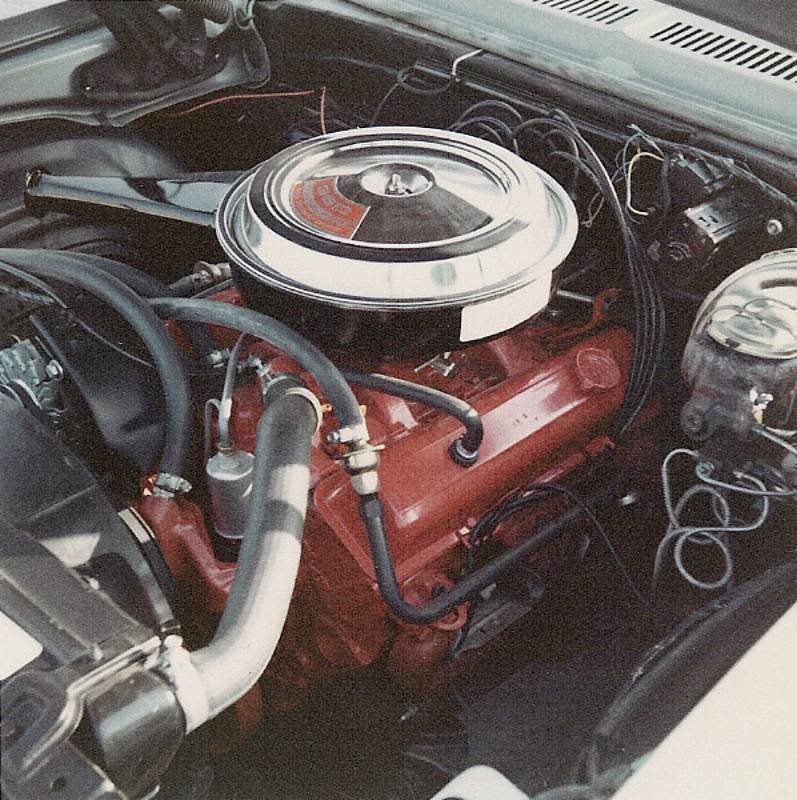

I think I snagged this pic from earlier L48 threads on this site.
Attached Images

__________________
1969 SS 350 Camaro 52 52 719
Reply With Quote
The Following User Says Thank You to Abiddle For This Useful Post:
RAII4speed (01-09-2018)
  #5
Old 01-09-2018, 05:59 PM
sc69sam@yahoo.co sc69sam@yahoo.co is offline
Yenko Paid Member

Join Date: Nov 2002
Location: Pennsylvania
Posts: 9,612
Thanks: 2
Thanked 97 Times in 87 Posts
Default

I believe that is a Site members car when he picked it up new from the Dealer.
Reply With Quote
  #6
Old 01-09-2018, 06:47 PM
roeville's Avatar
roeville roeville is offline
Member

Join Date: Nov 2011
Location: Nor Cal
Posts: 81
Thanks: 1
Thanked 3 Times in 2 Posts
Default

The heater hose fitting shown on your water pump should not be painted. Add engine lift brackets.
Reply With Quote
The Following User Says Thank You to roeville For This Useful Post:
RAII4speed (01-09-2018)
  #7
Old 01-09-2018, 08:35 PM
RAII4speed RAII4speed is offline
Senior Member

Join Date: Aug 2014
Location: MA
Posts: 218
Thanks: 116
Thanked 14 Times in 10 Posts
Default

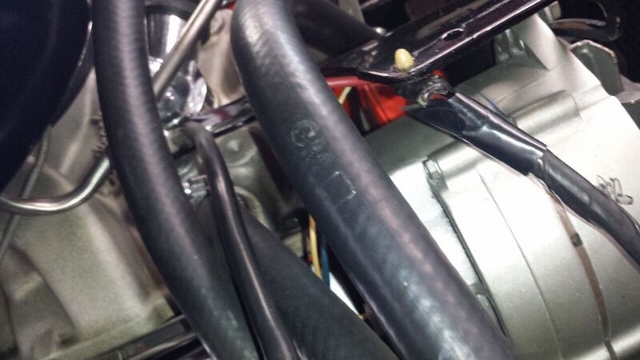

Is this the engine lift bracket? Should the hose go thru it?
THANKS
Attached Images

__________________
I don't hate the rich, And I don't pitty the poor
Reply With Quote
  #8
Old 01-09-2018, 08:37 PM
RAII4speed RAII4speed is offline
Senior Member

Join Date: Aug 2014
Location: MA
Posts: 218
Thanks: 116
Thanked 14 Times in 10 Posts
Default

These markings were added by the prior owner.
Should my car have them?
I believe the firewall paint is original.
Attached Images

__________________
I don't hate the rich, And I don't pitty the poor
Reply With Quote
  #9
Old 01-09-2018, 09:14 PM
Mr70's Avatar
Mr70 Mr70 is offline
Yenko Paid Member

Join Date: Jan 2001
Location: West Of Chicago
Posts: 18,263
Thanks: 7
Thanked 463 Times in 301 Posts
Default

Quote:
Originally Posted by RAII4speed View Post
Is this the engine lift bracket? Should the hose go thru it?
THANKS

Yes.
No.
Reply With Quote
The Following User Says Thank You to Mr70 For This Useful Post:
RAII4speed (01-09-2018)
  #10
Old 01-09-2018, 09:45 PM
Jonesy's Avatar
Jonesy Jonesy is offline
Yenko Paid Member

Join Date: Mar 2002
Location: Duluth, Minnesota
Posts: 1,783
Thanks: 9
Thanked 93 Times in 74 Posts
Default

Looks like his negative cable goes to the thermostat bolt which is correct.
Those PBT stamps were used at Norwood, so those would not be correct.

Looks like your brake booster hose is too long so cut it shorter.
Should be a clip on the top of the alt bracket for the neg wire??

That old pic really shows alot!!
