#61
|
||||
|
||||

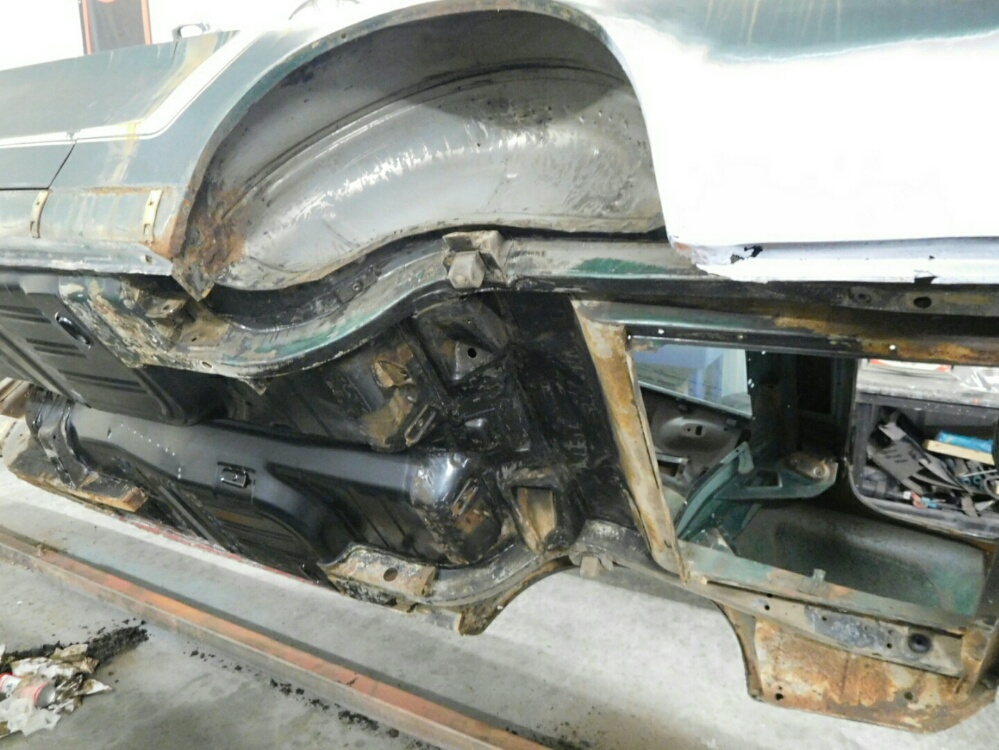

And yes, all the red oxide was sanded off for a clean, metal to metal surface to weld up against. And notice the car in relation to the other, NICE, car....."No Bees were harmed in the filming of this floor pan installation"
As I'm researching more into the Mustang Realm, I've found a few cool things that were changes mid 68. Notice the real side marker bezels on my car. They consist of a reflector and a surrounding painted bezel. Sometime around February due to a strike at Ford and a cost cutting measure, 68s switched to the 68 Cougar side marker bezel. Also, early in December, the lower center dash pad, commonly called a knee pad, was removed. March timeframe, the A-Pillar trim pads were removed. My car was a late December build. I have A-Pillar pads, no knee pad, and the reflector and bezel, non-Cougar, style rear side marker. Neat stuff!!!!! Cheers Dave Last edited by A12pilot; 04-06-2017 at 10:30 AM. |
#62
|
||||
|
||||
Quote:
__________________
-Dave Semper Fi! 69 Camaro SS396 L34 X66 |
#63
|
||||
|
||||
May I suggest CLR for the roof? Just to see how well it works?
Is the Day 2 exhaust staying on the car?
__________________
My cars, passed down by my grandfather: '68 Camaro SS (454/TH400, possible L78/M22) LeMans Blue, black deluxe interior, black vinyl top. 3.73- mostly Day 2. '89 Mustang GT- 3.55, subframe connectors, muffler delete, and a couple other minor mods. Exactly as he wanted it, so how it shall stay Also: 1995 Ford F-150 XL 2004 Dodge Ram Hemi GTX- #192 of 433 Ain't no fun in viewing your car as an 'investment'. Get out there and beat on it! |
#64
|
||||
|
||||
I have heard that Dave finally wore out his welder.
A moment of silence please. Luckily there are many more to be had. Phil Woj |
#65
|
||||
|
||||
Yes, Phil, it was a sad day indeed...Please to be redirected to comment on Ginger's passing in the "Lounge" section at your leisure....
https://www.yenko.net/forum/showthread.php?t=142339 But, moving on, before the unfortunate passing happened, I was able to get the floor welded up! The Stangatang is about 95% rust free now!!!! Cheers |
The Following User Says Thank You to A12pilot For This Useful Post: | ||
1968w427gte (07-11-2017) |
#66
|
||||
|
||||

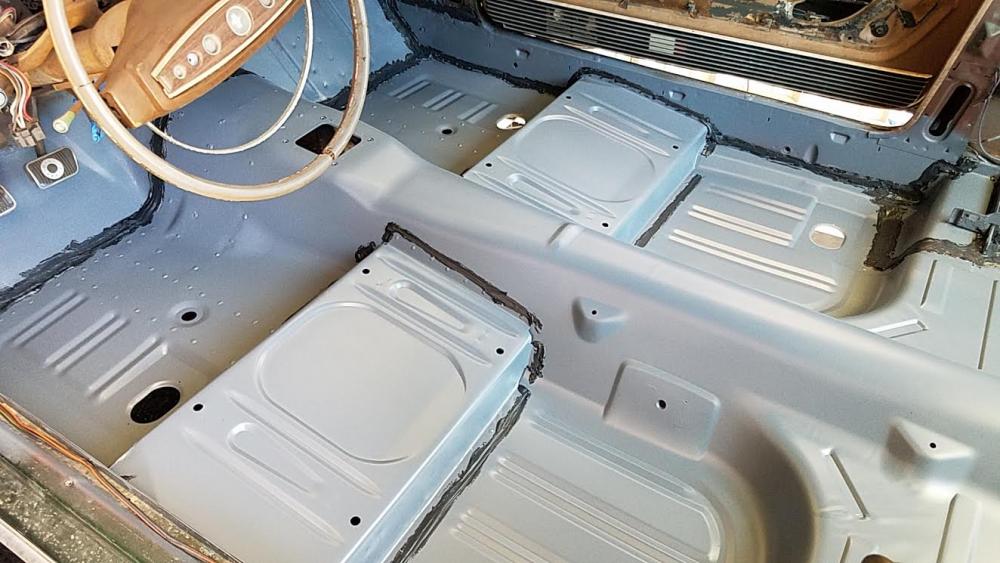

Floor in, primed up, and now I'm onto the remaining rust parts. A small patch on the lower driver's quarter panel, and part of the rear brace that the gastank mounts to, and the car will be rust free! After I pulled the tank I removed the sending unit. It's a rather unique one since it has the low fuel warning sensor on it. I'm going to send this out for a rebuild which, surprisingly, can be done and even more of a shocker is the fact that the float arm still moves freely!!! But, meanwhile, back in the trunk, I noticed a nice factory curtain that might have got past Quality Control
Ford..."Quality is Job Run!" I also laid out the exhaust system that came with the car. Part numbers still on the pipes to boot! Although I can't seem to reference them based on those numbers. I thought it was for a smallblock 289/302 since the 289 is in the part number, but they mate up to the factory 390 exhaust manifolds. They aren't going back on the car, but it still would be nice to know what vintage they are. Cheers |
#67
|
||||
|
||||

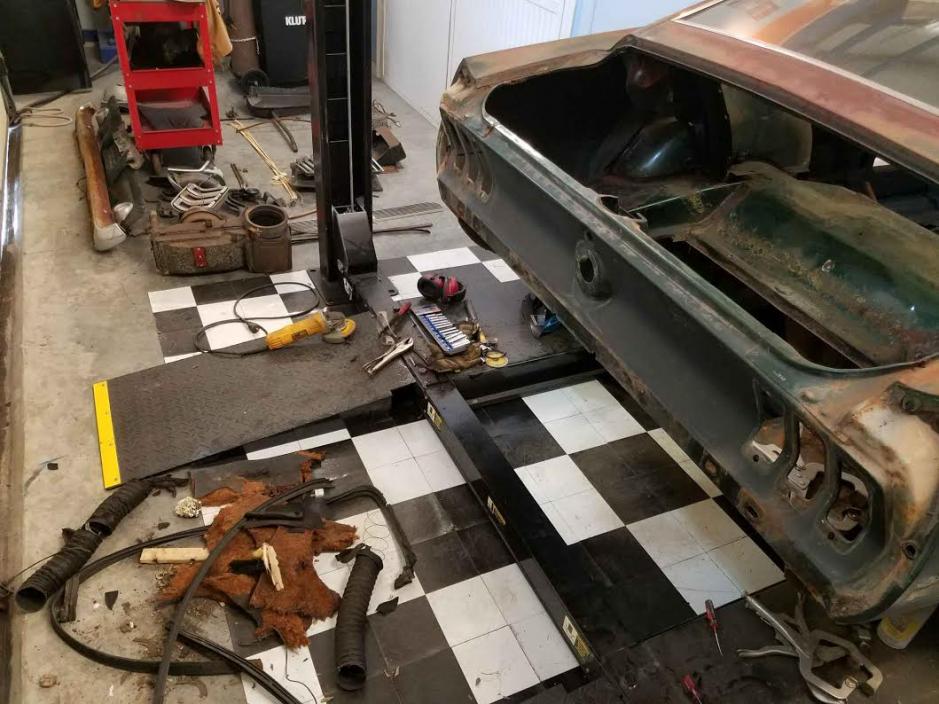

In continuing the continuation of continuing on, I continued the teardown of the Stang after welding up the lower back quarter and rear trunk brace/gas tank holder down thingy. I know, pretty technical terms I'm throwing out here, but I've set the trend with another thread, and this type of nonsensical banter is to be expected I haven't done a Mustang in a long, long time, nor have a done one with the Convenience Group, so there's a bit more wiring involved which means plenty of pics to lose between now and reassembly
Time to get out some plate steel and start making braces for mounting it up onto the twirler!!! And, get out the baggies and boxes to get all these parts up into the storage area on top of the mezzanine, that was JUST freshly cleaned up from Bee parts! At this rate, I'll never have a clean shop!!!!! More to come..... Cheers |
The Following User Says Thank You to A12pilot For This Useful Post: | ||
1968w427gte (07-11-2017) |
#68
|
|||
|
|||
----Dave,,,Id have to think really hard weather to put anything over top of that floorpan. It just looks so nice in the gray with the sealer. Don't cover it up!.....Bill S
|
#69
|
||||
|
||||

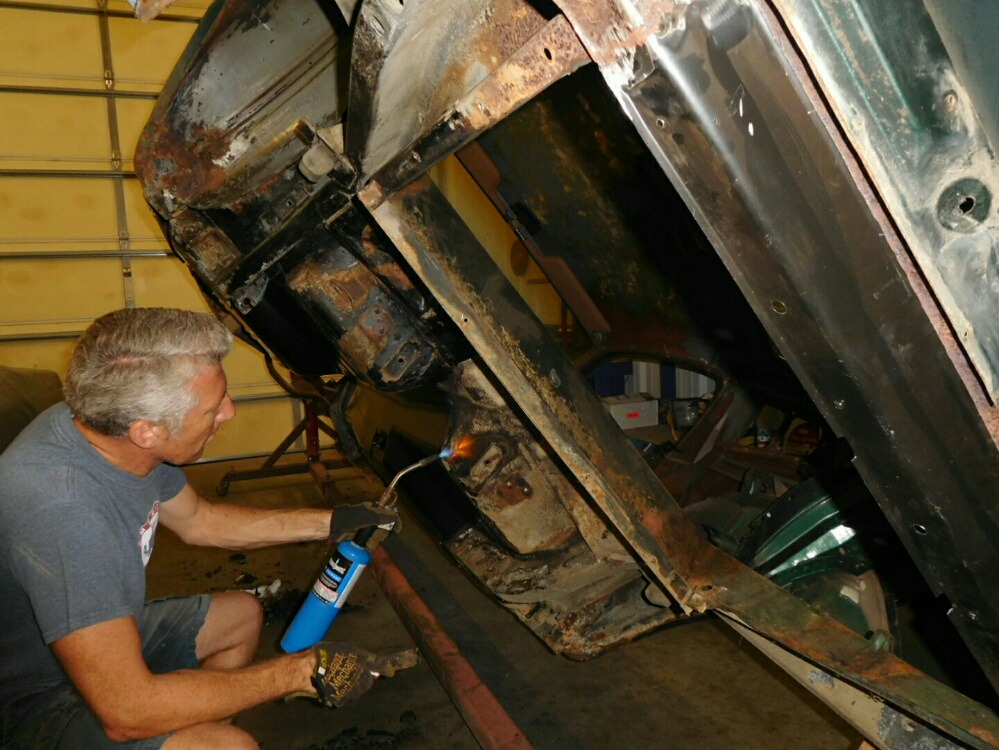

Fear not! I have been working on the Stang-a-tang, the Stang-a-roo, the Rus-Stang!!!! With the Bee wrapped up, and having bought another car that needed some immediate attention, I got a little side tracked but now I'm back on track. What track, I'm not sure. Maybe it's the tracks of the Crazy Train for even thinking I should do another restoration! But, I've quickly come to realize that if I don't do it, it's not getting done. So time get this thing on the twirler and scrape off some undercoating and start blasting off the old paint/rust/mud dauber homes.
What I've found was a few Highland Green overspray patterns, three different color primers used on the underside, and a few factory paint markings What's left after all this? As you can see, a big ole' pile of used up undercoating that weighs about 5lbs. Anyone need any? I'll sell cheap...NOS Ford Undercoating: Just melt down and reapply!!! Cheers Dave Last edited by A12pilot; 07-07-2017 at 12:06 PM. |
#70
|
||||
|
||||

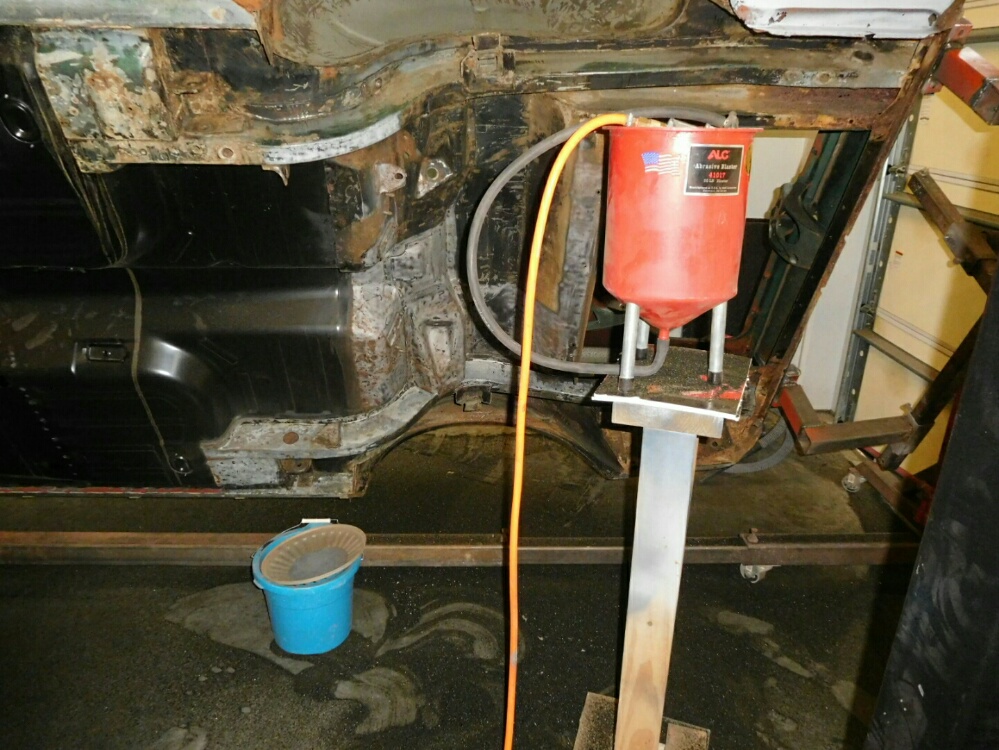

So what next?? Blasting time. And being the cheapskate I am, I decided I'm going to do this myself since the blasters around here are, should we say, LESS than reliable. I masked off my paint booth with some drop plastic and put a few fans in there for dust evacuation. Oh, and don't worry, the Bee was nowhere around (stored in another shop that dust, tool and more importantly, PEOPLE (me) Free!!!!) So far, VERY happy with the results. This was just the first pass to get most of the heavy stuff off. I'll probably have to go over it a few times to get it totally cleaned up. I use two blasters, the one you see in the picture and a hand held Speedblaster gun. They both really work well. It's the compressor that's the probelm. I really need a two stage air compressor to keep up. HEY? I need another tool!!!!
Cheers Dave |
The Following 2 Users Say Thank You to A12pilot For This Useful Post: | ||
1968w427gte (07-11-2017), Over Anxious (07-07-2017) |
|
|
